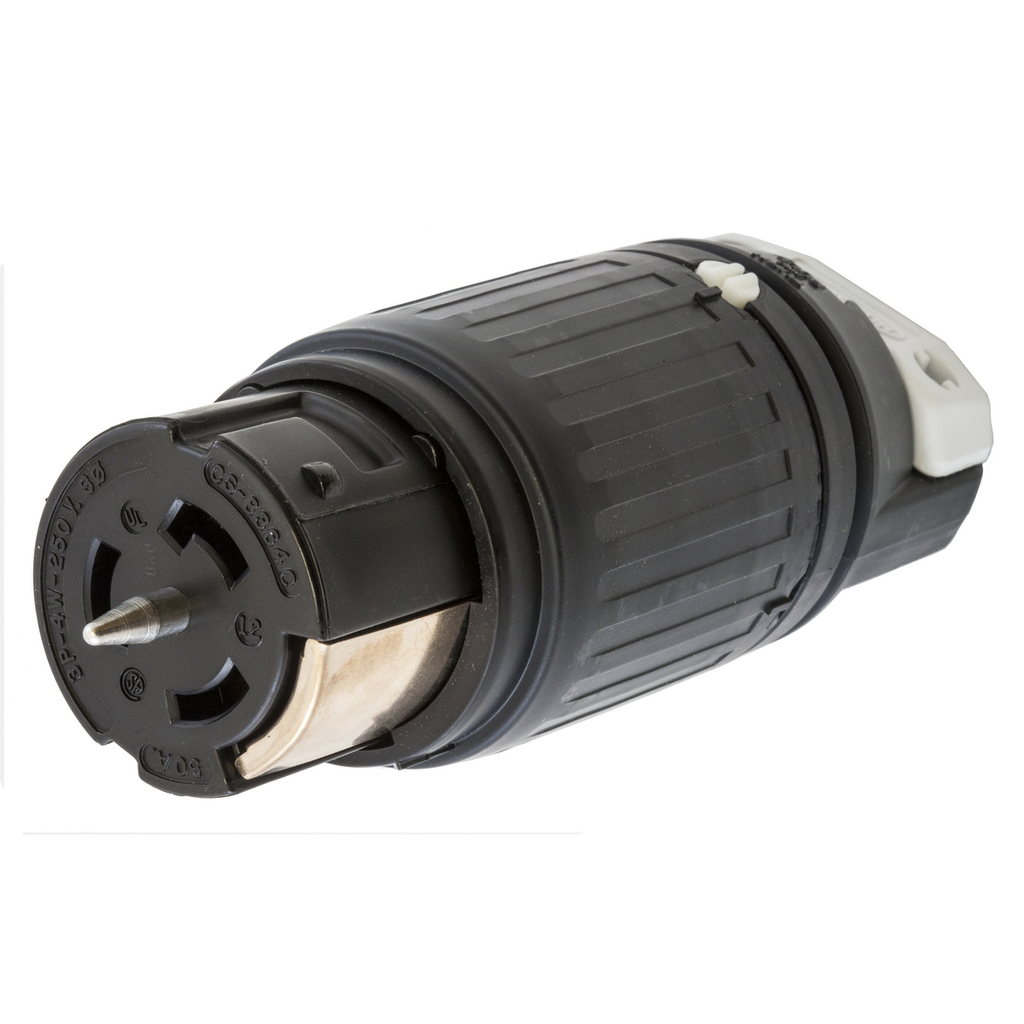

Hubbell Wiring Device-Kellems CS8364C 50A 3Ph 250V AC Twist-Lock Black Nylon Connector Body

Product Description

The Hubbell Wiring Device-Kellems CS8364C is a durable twist-lock connector designed for industrial use. This female connector body supports a current rating of fifty amps and is suitable for three-phase delta connections at two hundred fifty volts AC. The design features a screwed terminal for secure connections and is compliant with CSA and UL standards.

• Heavy-duty two-piece external cord clamp ensures optimal strain relief
• Box terminal with hex socket threaded slug for high clamping pressure
• Thermoplastic polyester construction provides heat resistance

Product Highlights

This connector body is ideal for heavy-duty industrial applications, making it a reliable choice for electricians and technicians.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Type: Twist-Lock Connector

Technical Specifications

• MPN: CS8364C
• Current: 50 Amp
• Voltage: 250 Volt
• Material: Composite

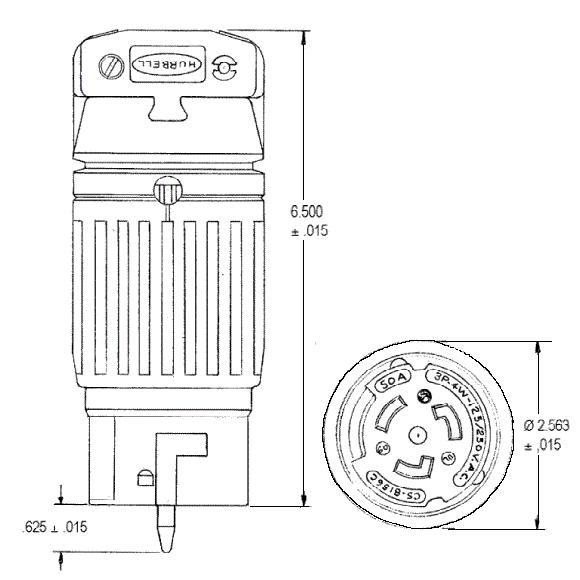

• Dimensions: 6.5 inches (length) x 2.7 inches (width) x 2.5 inches (height)
• Wire Size: 10-6 AWG
• Number of Poles: 3
• Wire Count: 4
• Temperature Rating: -25 to 75 degrees Celsius with impact
• Operating Temperature: -40 degrees Celsius
• Country of Origin: USA
