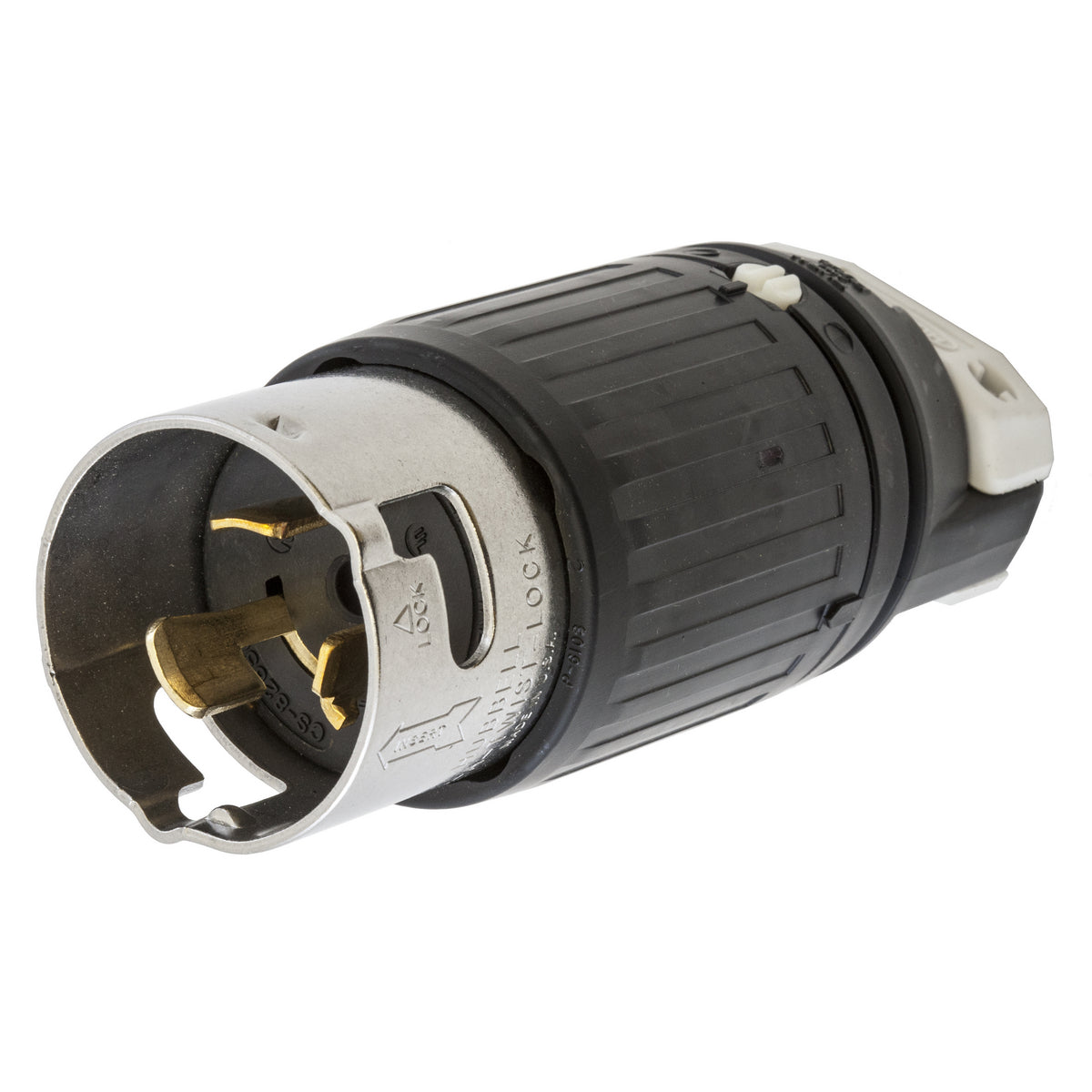

Hubbell Wiring Device-Kellems CS8265C Insulgrip Twist-Lock Plug 50A 250VAC Standard Sized

Product Description

Hubbell Wiring Device-Kellems CS8265C is an Insulgrip twist-lock male plug rated 50 A at 250 VAC for single-phase, 2-pole, 3-wire grounding applications. The composite/nylon housing with stainless steel shroud and heavy-duty external cord clamp provides strain relief and contact protection. Cord diameter range is 0.83 to 1.25 in and the device uses pressure screw terminals. Enclosure rating IP20 and operating temperature range -40 to 75 �C. Dimensions approximately 2.59 in diameter by 6.38 in length.

• Rated 50 A, 250 VAC; 2-pole, 3-wire grounding configuration (single phase)
• Composite/nylon housing with stainless steel shroud and heavy-duty two-piece external cord clamp for strain relief
• Pressure screw terminal connections; accepts #10 AWG to #6 AWG conductors; cord range 0.83�1.25 in

Product Highlights

Industrial extra heavy duty Insulgrip twist-lock plug with IP20 enclosure, pressure screw terminals, and wide temperature range (-40 to 75 �C) for cord-mounted applications.

Product Information

Standard Information

• Brand: HUBBELL WIRING DEVICE-KELLEMS
• Manufacturer Part Number: CS8265C
• Country of Origin: USA
