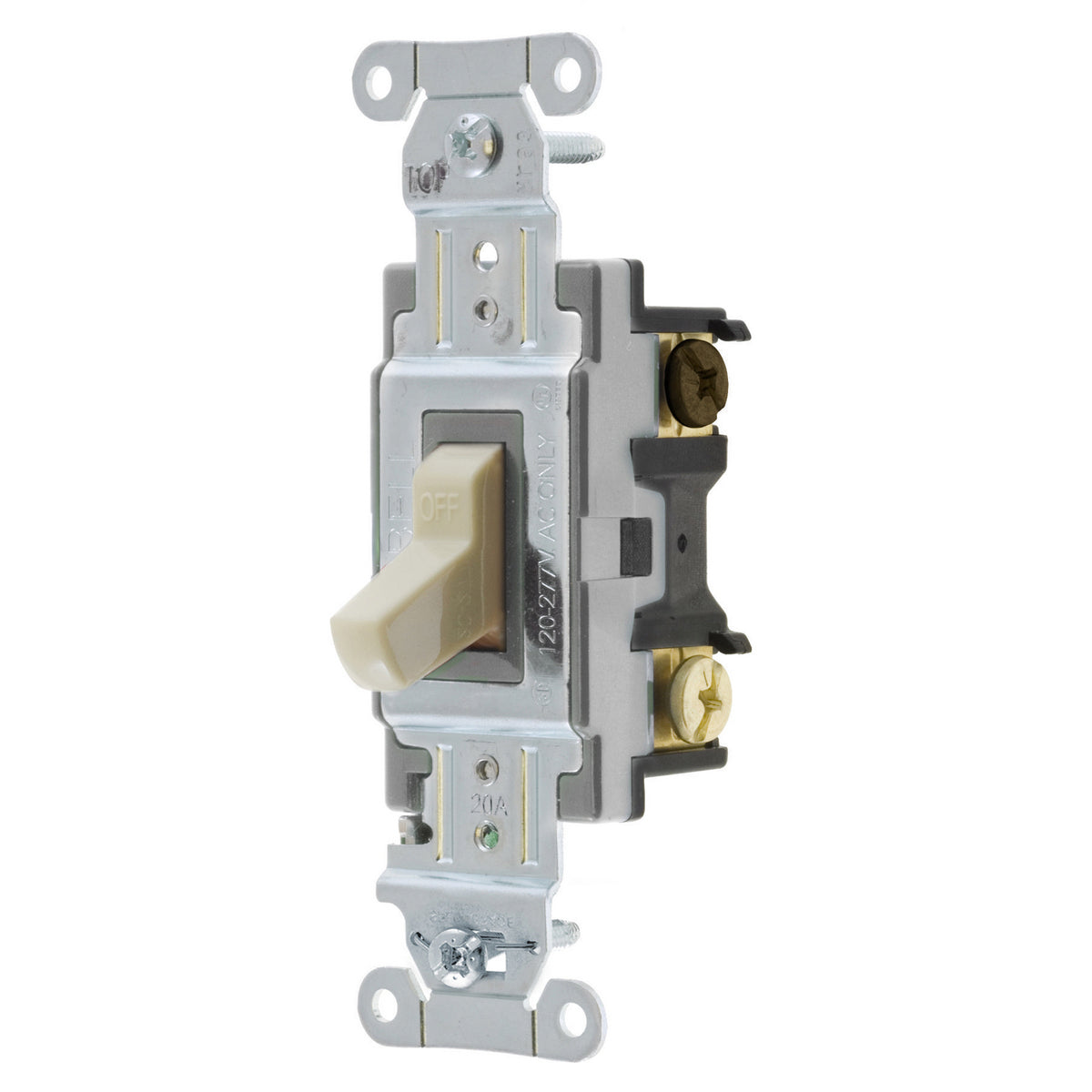

Hubbell Wiring Device-Kellems CS320I 20A 120/277V 3Way Ivory Toggle Switch

Product Description

The Hubbell CS320-I is a toggle switch designed for commercial use. This switch has a rating of 20 amps and operates at voltages of 120 to 277 volts. It is part of the specification grade commercial series and is suitable for general purpose lighting controls.

• Three-way functionality for versatile control
• Positive snap action for reliable operation
• Side wired connection for easy installation

Product Highlights

This switch is made of nylon and features an abuse-resistant toggle. The steel bridge is zinc plated for corrosion resistance. Ideal for commercial applications, it meets UL standards.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• Current: 20 Amps
• Voltage: 120-277 Volts
• Wattage: 5540 Watts

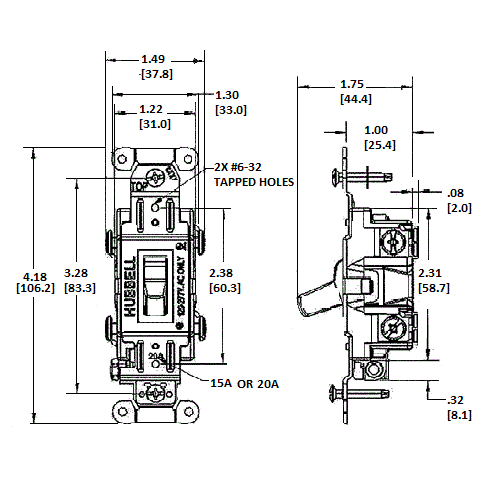

• Height: 1.83 inches
• Width: 1.9 inches
• Length: 4.18 inches
• Weight: 0.15 lbs
• Material: Nylon
• Operating Temperature: -40 degrees C
