Hubbell Wiring Device-Kellems CS115W 15A 120/277V SP Toggle Switch

Product Description

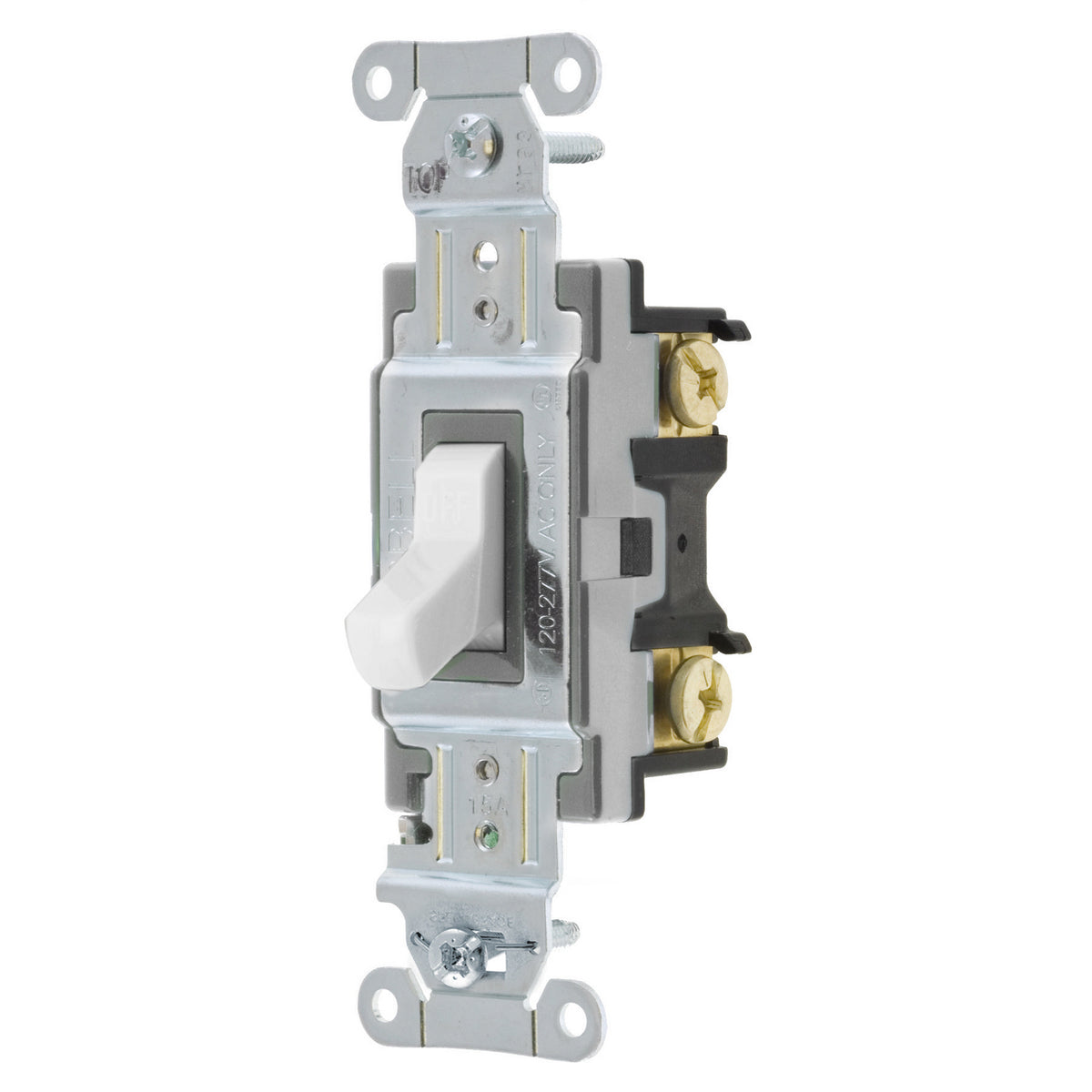

The Hubbell Wiring Device-Kellems CS115W is a single pole toggle switch rated for fifteen amps at 120 to 277 volts. It is designed for easy side wiring, offering a reliable solution for various electrical applications.

• Thread cleaning captive mounting screw
• Abuse resistant nylon toggle
• Steel, zinc plated bridge for corrosion resistance

Product Highlights

This toggle switch is a part of the Commercial Grade series, suitable for use in indoor dry conditions. The material construction provides durability and ensures long-term reliability in commercial settings.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring

Technical Specifications

• Current Rating: 15 Amps
• Voltage Rating: 120-277 Volts
• Wattage: 4.155 Watts
• Material: Nylon
• Number of Poles: Single Pole
• Contact Configuration: Two Position
• Operating Temperature: Maximum continuous seventy-five degrees Celsius, minimum minus forty degrees Celsius
• Operating Cycles: Fifty thousand
