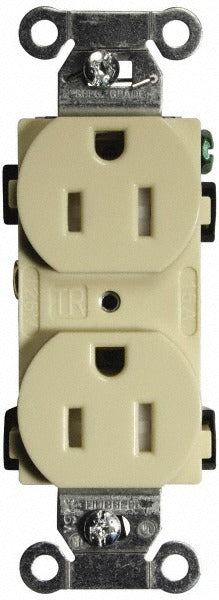

Hubbell Wiring Device-kellems CR15ITR Duplex Receptacle

Product Description

The HUBBELL WIRING DEVICE-KELLEMS CR15ITR is a specification-grade, straight blade duplex receptacle rated at 15 amps and 125 volts AC on a NEMA 5-15R configuration. Built with a nylon body and a self-grounding design, this receptacle meets the demands of commercial and residential electrical installations where reliability and code compliance are required. The tamper-resistant feature restricts insertion of foreign objects into the slots, making it suitable for environments where that level of protection is mandated. Side wiring and flush mount design allow for straightforward installation in standard single-gang boxes.

The CR15ITR is used in commercial, institutional, and residential applications where specification-grade components are required. Its tamper-resistant slots meet NEC requirements for receptacle placement in areas such as pediatric care facilities, hotel corridors, and similar occupancies. The flush mount, single-phase, 2-pole, 3-wire configuration is the standard for general-purpose 15-amp branch circuits throughout North American buildings. The ivory finish suits standard decor. Electricians working on new construction, renovation, or service calls will find this receptacle appropriate for a wide range of branch circuit outlet applications.

Key Features

• Specification grade nylon body for durability in demanding installations
• Tamper-resistant slots restrict accidental or intentional insertion of foreign objects
• Self-grounding design simplifies bonding to metal device boxes
• Side wiring method accommodates standard branch circuit conductor termination
• Flush mount profile fits single-gang electrical boxes
• Meets CSA, UL 498, UL 94 V-2, and Federal Specification W-C-596 standards

Compatibility

Designed as an OEM-style specification-grade replacement or new-installation duplex receptacle for standard NEMA 5-15R, 15-amp, 125-volt single-phase branch circuit applications using flush-mount single-gang device boxes.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize the branch circuit at the panel and verify absence of voltage with a meter before beginning work. Terminate conductors on the side-wiring terminals per the markings on the device body. Tamper-resistant receptacles must be installed as received and must not be modified or bypassed.
