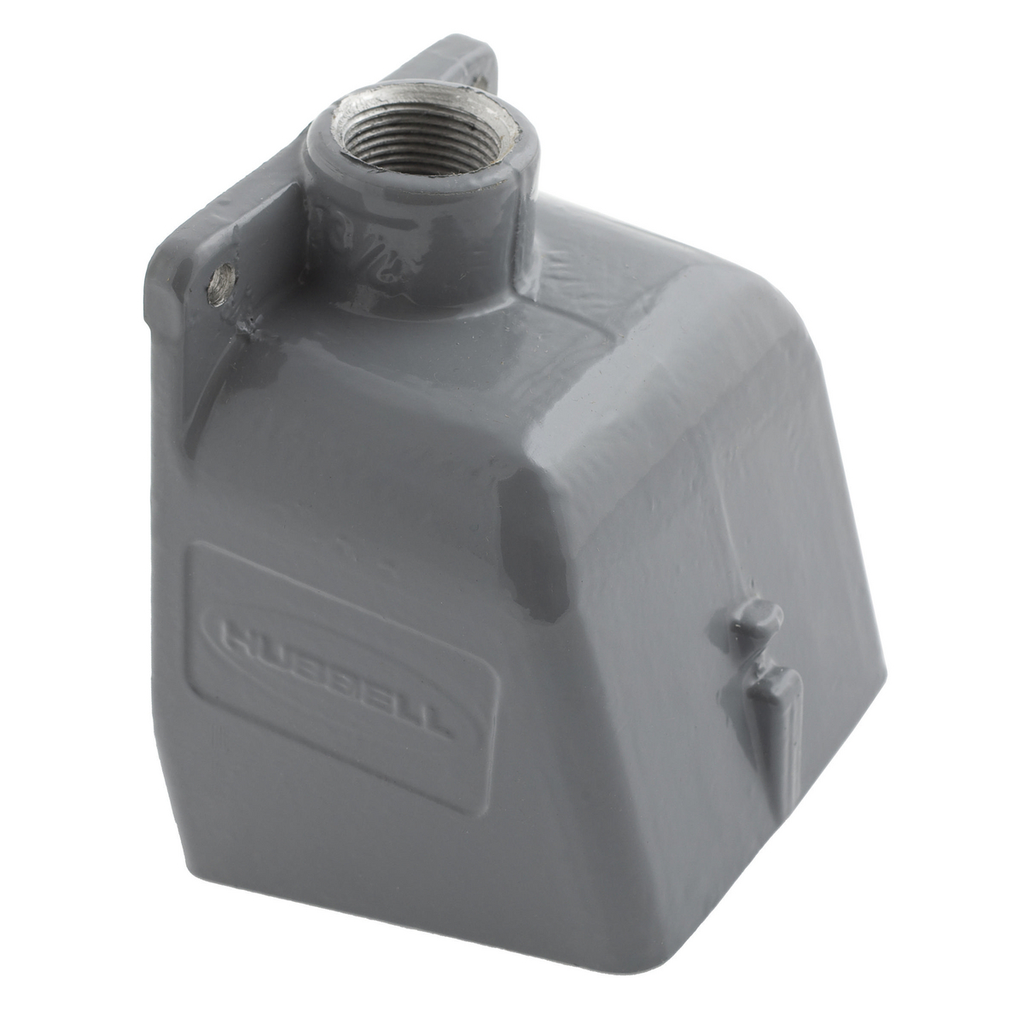

Hubbell Wiring Device-Kellems BB1002W 2 Inch Metallic 15 Degrees Watertight IEC Pin and Sleeve Back Box

Product Description

The Hubbell Wiring Device-Kellems BB1002W is a two-inch metallic back box designed for IEC pin and sleeve devices. This product is suitable for industrial applications requiring a watertight connection. It fits devices rated for one hundred to one hundred twenty-five amps and features an angled design for easier installation.

• Constructed of corrosion-resistant gray cast aluminum
• Compatible with 100A 2 NPT hub
• Includes mounting screws

Product Highlights

The BB1002W back box is designed for rugged use and meets UL raintight standards. It is suitable for angles of fifteen degrees, making it ideal for specific installation needs.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• Type: Rectangular, Marine, 15 Angled
• Weight: 3.95 lb
• Dimensions: 171.5 mm (Length) x 139.7 mm (Width) x 206.5 mm (Depth) / 6.55 inch (Height)
• Material: Aluminum
• Standard: External Icing Test, UL Raintight
• Color: Gray
• Cable Entry: Through Hub, 2 inch NPT Hub
• Country of Origin: China
