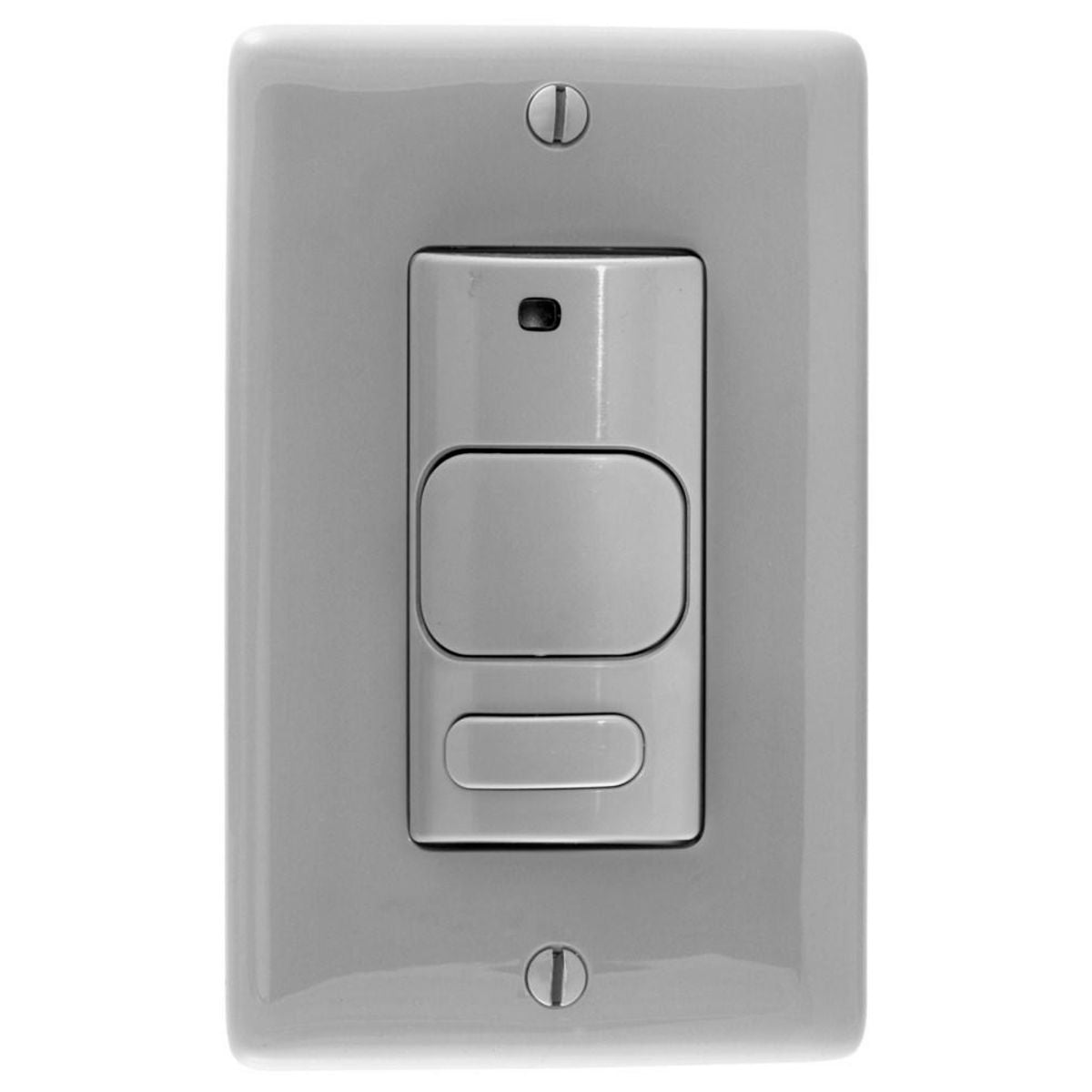

Hubbell Wiring Device-Kellems AP1277GY1 HWDK AP1277GY1 WS SENS, PIR, 1 CIRC

Product Description

The Hubbell Wiring Device-Kellems AP1277GY1 is a wall switch occupancy sensor designed for adaptive passive infrared applications. It operates on a voltage of 120/277V AC and supports single circuit installations. This sensor is suitable for various commercial applications, providing reliable control of lighting based on occupancy.

• Features adaptive technology for efficient energy use
• Designed for indoor dry environments
• Adjustable sensitivity for customized performance

Product Highlights

The AP1277GY1 sensor contributes to energy savings by automatically turning lights on and off based on the detected presence of people.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Type: Commercial Wall Switch

Technical Specifications

• Supply Voltage: 120/277V AC
• Sensor: Adaptive Passive Infrared
• Operating Temperature: 32 Deg F to 104 Deg F (0 Deg C to 40 Deg C)
• Sensing Range: 42 to 54 Inches above the floor
• Control Output: Input Voltage
• Operating Cycles: 6,000 cycles minimum
• Environmental Conditions: Indoor Dry unless protected by additional means
