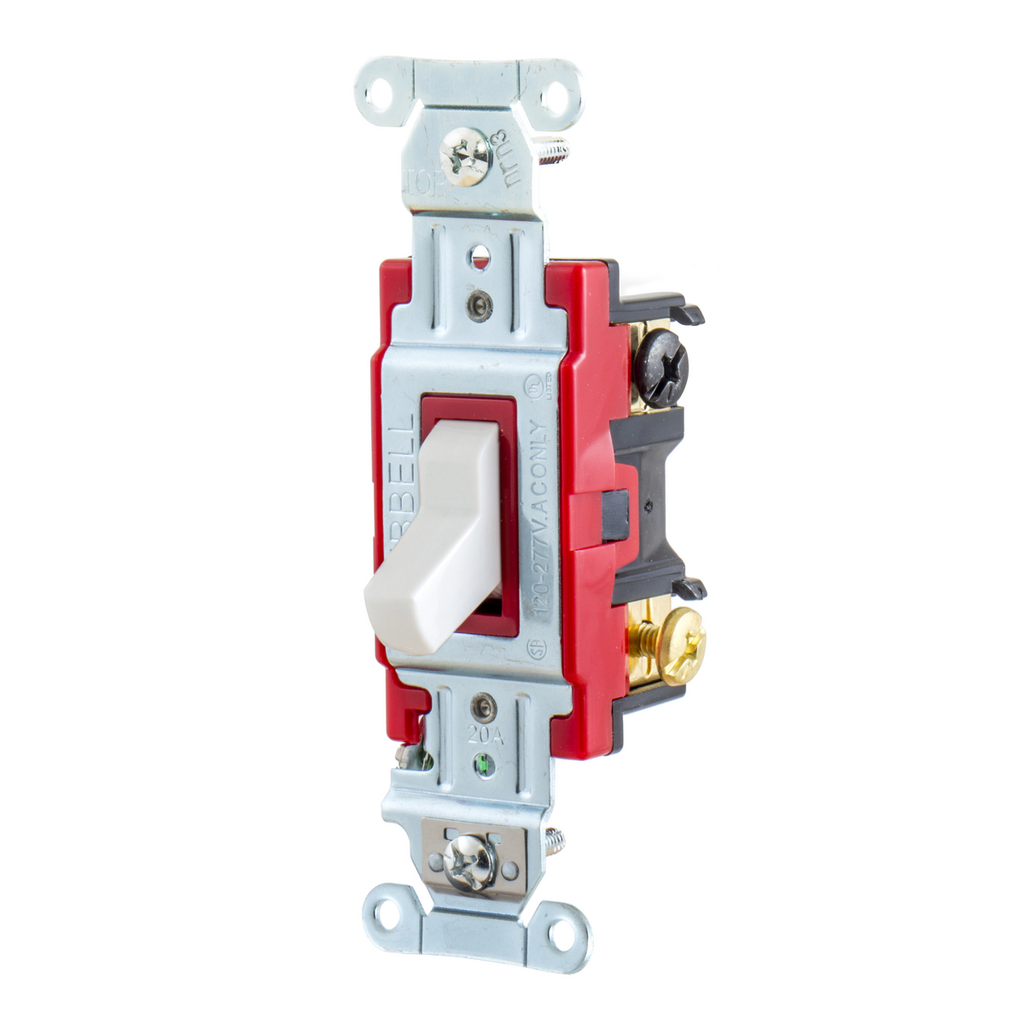

Hubbell Wiring Device-Kellems 1223W Hubbell-PRO 3-Way Toggle Switch 20A 120/277V Replacement MPN

Product Description

The Hubbell Wiring Device-Kellems 1223W is a three-way toggle switch rated for twenty amps at 120/277 volts. This device is designed for general purpose wiring applications in industrial settings. It features a durable construction for reliable performance in demanding conditions.

• Corrosion-resistant, zinc-plated steel design
• Color coded for easy inspection
• Strip gauge included for precise wiring

Product Highlights

This switch is ideal for heavy duty industrial applications. It allows for easy installation and service with its back and side wired connections.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• Grade: Industrial
• Type: General Purpose, 2-Position, 3-Way
• Current Rating: 20 Amp
• Voltage Rating: 120-277 Volt
• Wattage: 5540 Watt
• Actuator Style: Toggle
• Material: Thermoplastic
• Enclosure Type: None
• Operating Temperature: -40 degrees C
• Operating Cycles: 50000
• Wire Size: 14-10 AWG
• Contact Configuration: Two Position
• Operating Condition: Indoor Dry unless protected
