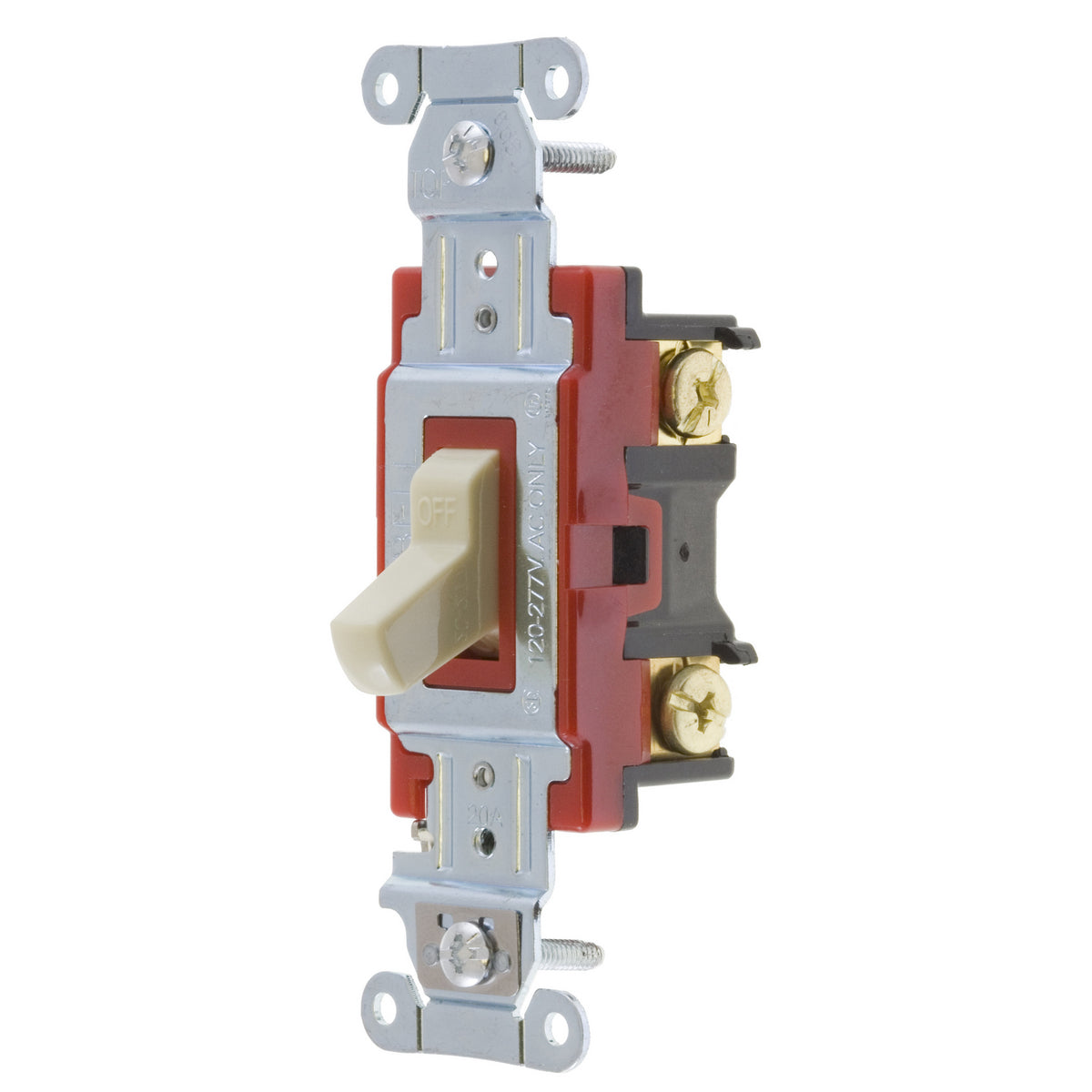

Hubbell Wiring Device-Kellems 1222I Hubbell-PRO Toggle Switch, 20A 120/277V, Ivory

Product Description

The Hubbell Wiring Device-Kellems 1222I is a toggle switch designed for general purpose applications. It operates at 20 amps and 120 to 277 volts. This double pole switch is back and side wired, suitable for various heavy-duty industrial uses.

• Corrosion resistant steel, zinc plated bridge
• Color coded by amperage for easy inspection
• Strip gauge included for accurate wiring

Product Highlights

This toggle switch is part of the Hubbell-PRO series, combining reliability with ease of use, making it ideal for both professional and industrial settings.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Type: Double Pole Toggle Switch

Technical Specifications

• Current Rating: 20 Amp
• Voltage Rating: 120-277 Volt
• Wattage: 5540 Watt
• Material: Thermoplastic
• Mounting: Screw Mount
• Operating Cycles: 50000
• Environmental Conditions: Indoor Dry, unless protected
• Operating Temperature: -40°C to 75°C
