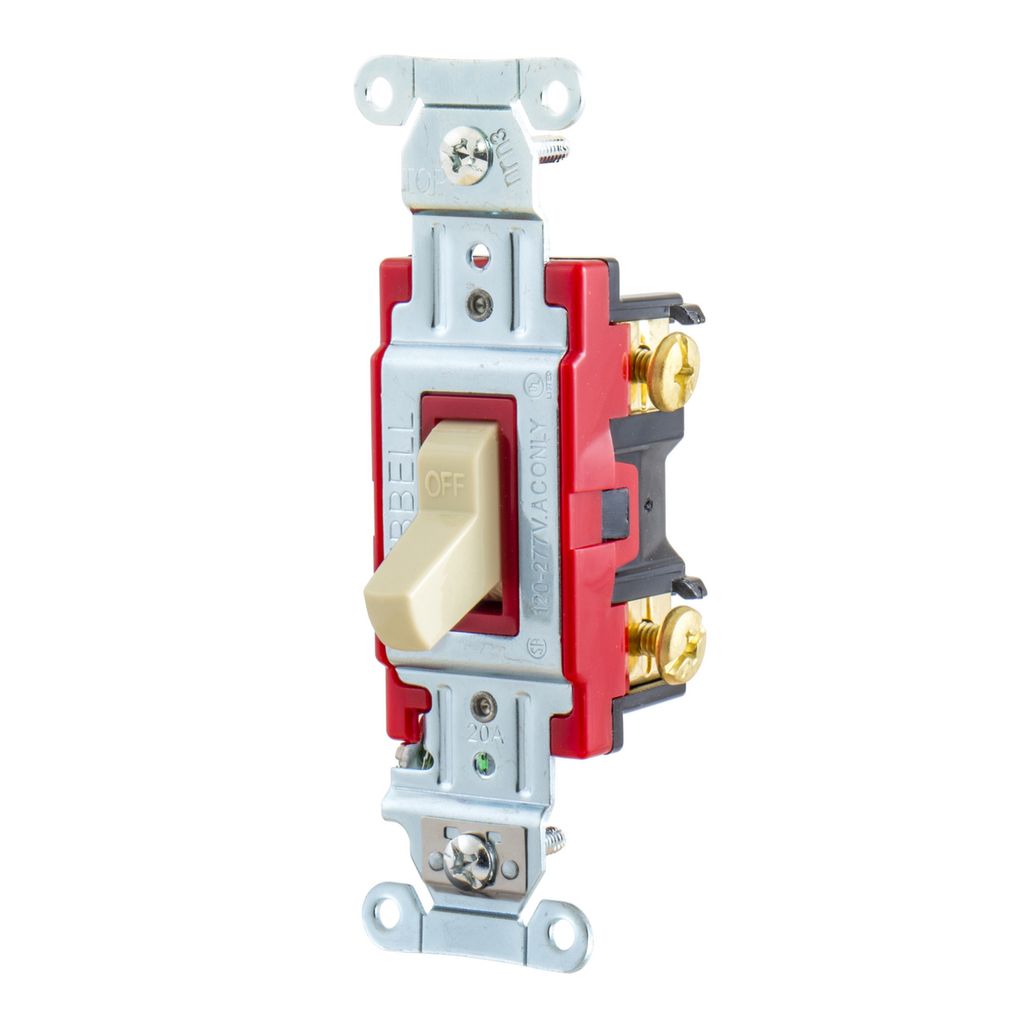

Hubbell Wiring Device-Kellems 1221I Hubbell-PRO Single Pole Toggle Switch 20A 120/277V

Product Description

The Hubbell Wiring Device-Kellems 1221I is a single pole toggle switch designed for use in general purpose AC applications. It supports up to twenty amps at a voltage of one hundred twenty to two hundred seventy-seven volts. This switch features both back and side wiring capabilities for easier installation and maintenance.

• Steel zinc plated bridge for corrosion resistance.
• Color coded by amperage for easier inspection.
• Strip gauge included for precise wiring.

Product Highlights

This switch is ideal for various heavy-duty industrial applications where reliability and durability are essential.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• Type: Toggle
• Color: Ivory
• Current Rating: 20 Amp
• Voltage Rating: 120-277 Volt
• Wattage: 5540 Watt
• Material: Thermoplastic
• Enclosure: None
• Operating Temperature: -40 degrees C to 75 degrees C
• Mounting: Screw Mount
• Standard: UL Listed
• Number of Poles: 1 Pole
• Operating Cycles: 50,000
