Hubbell wiring device HBL2433 HWD Grounding Heavy Duty Cord Mount Locking Connector 480 VAC 20 A L16-20R

Product Description

The Hubbell Wiring Device HBL2433 is a locking connector designed for heavy-duty applications. It operates at a voltage of four hundred eighty VAC and a current rating of twenty amps. This connector is ideal for industrial use, featuring a robust design that caters to demanding conditions.

• Rated for 480 VAC and 20 A.
• Compatible with cord sizes from 0.35 to 1.15 inches in diameter.
• Constructed from durable nylon, with a black and white finish.

Product Highlights

This connector is equipped with a pressure screw terminal for secure wire connections. Its design includes an integral dust shield that protects the wiring chamber from contaminants.

Product Information

Standard Information

• MPN: HBL2433
• Brand: Hubbell Wiring Device-Kellems

Technical Specifications

• Voltage Rating: 480 VAC
• Amperage Rating: 20 A
• Horsepower: 5 hp
• Number of Poles: 3
• Number of Wires: 4

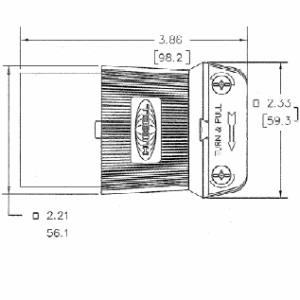

• Size: 2.33 x 2.33 x 3.86 inches
• Temperature Rating: -40 to 75 degrees C
• NEMA Rating: L16-20R
• Material: Nylon
• Enclosure Rating: IP20
• Connection Type: Pressure Screw Terminal
