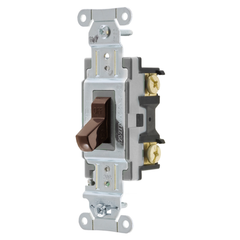

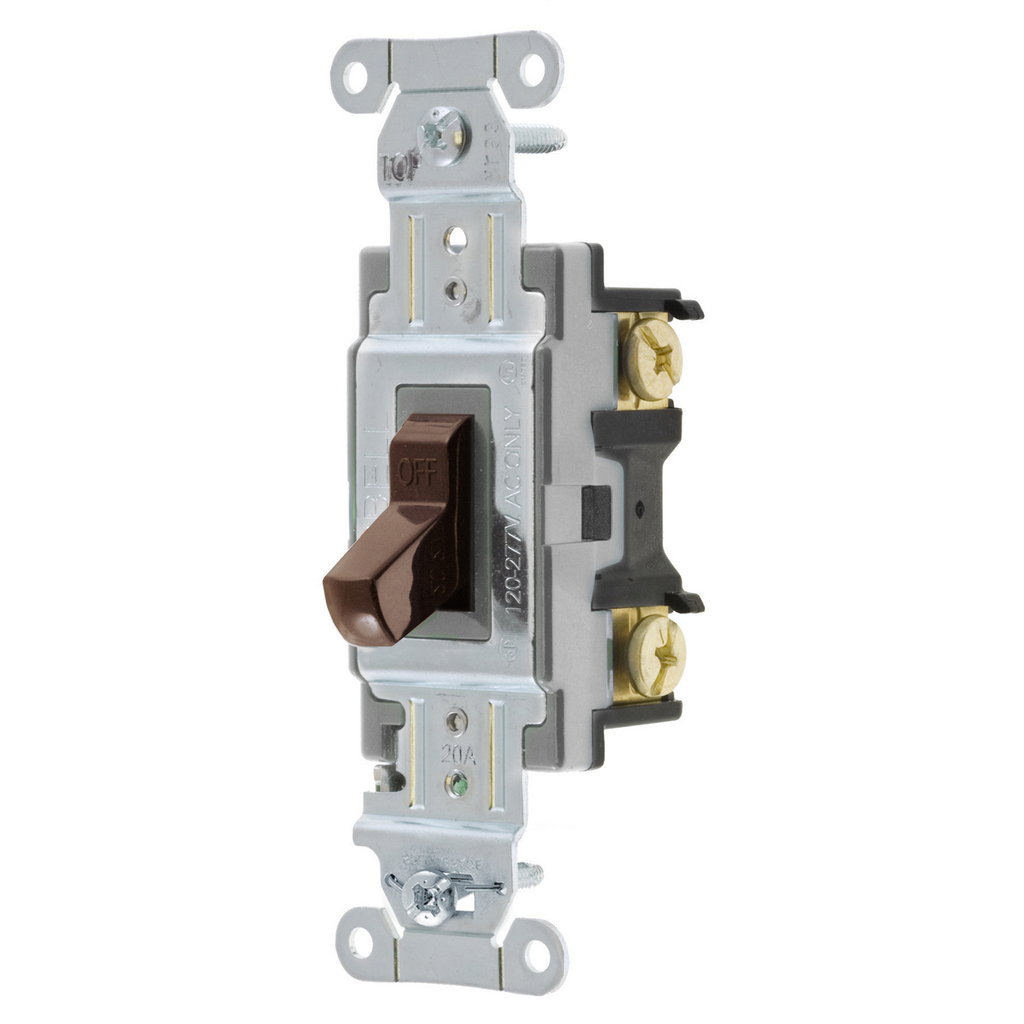

Hubbell Wiring CS120 20A 120/277V SP Toggle Switch

Product Description

The Hubbell Wiring Device-Kellems CS120 is a single pole toggle switch designed for commercial grade applications. This switch is rated for twenty amps at 120 or 277 volts AC. It features a durable nylon toggle and a thermoplastic housing.

• Thread cleaning captive mounting screw
• Abuse resistant nylon toggle
• Corrosion resistant zinc plated steel bridge

Product Highlights

This toggle switch is ideal for various commercial applications, ensuring reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Catalog Number: CS120

Technical Specifications

• Current Rating: 20 Amp
• Voltage Rating: 120-277 Volt
• Dielectric Strength: 1500 Volt AC
• Material: Thermoplastic Housing, Nylon Toggle
• Color: Brown
• Dimensions: 1.49 inches (Width) x 1.75 inches (Depth) x 4.18 inches (Height)
• Terminal Connection: Side Wired Only
• Environmental Conditions: Indoor Dry, protected as necessary
