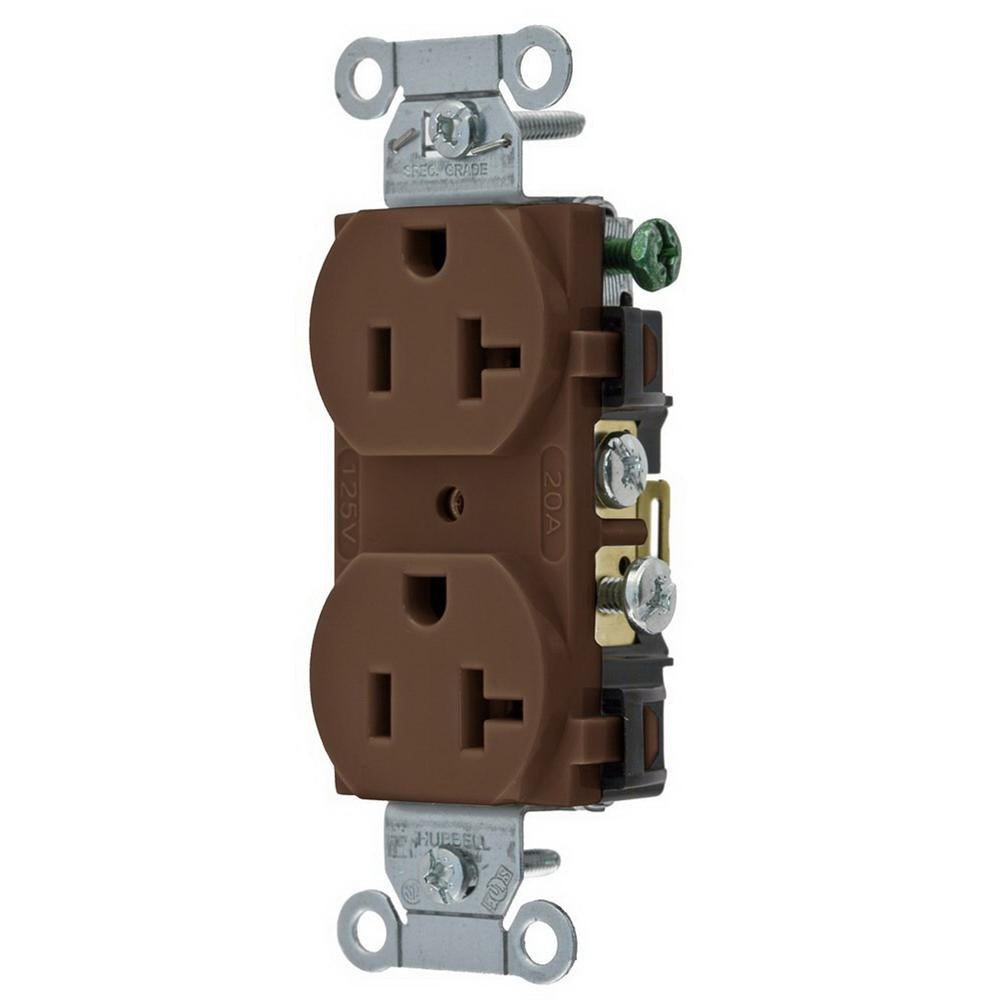

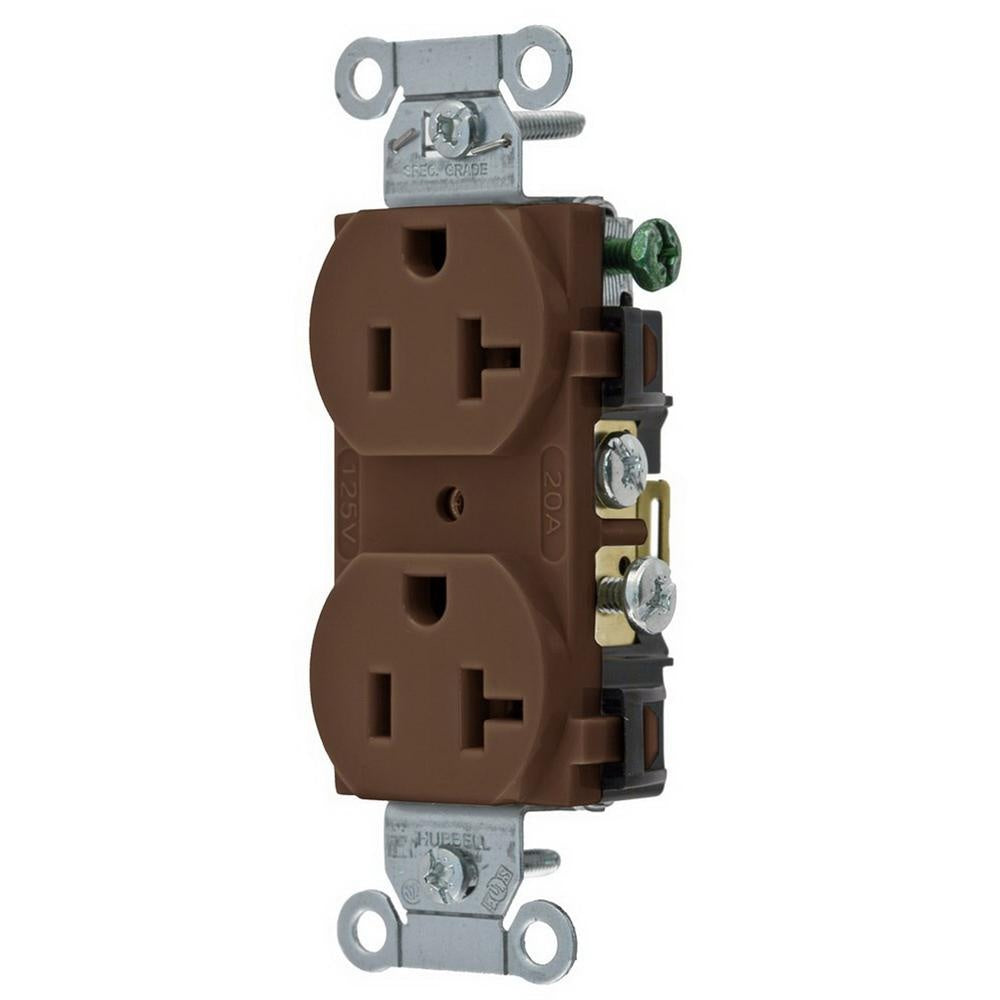

Hubbell Wiring CR20 Wiring Device-Kellems CR20 HWD 1-Phase Duplex Grounding Standard Straight Blade Receptacle 125 VAC

Product Description

The Hubbell Wiring Device-Kellems CR20 is a standard straight blade receptacle. It is designed for 1-phase duplex grounding applications. With a voltage rating of 125 VAC and an amperage rating of 20 A, this device is built for reliable performance.

• Compatible with NEMA 5-20R configuration.
• Constructed from composite and thermoplastic materials.
• Temperature rating of -40 to 75 degrees Celsius.

Product Highlights

This receptacle features a durable nylon base and a brass terminal for enhanced conductivity. It supports side-wired connections for ease of installation.

Product Information

Standard Information

• Brand: Hubbell Wiring
• MPN: CR20

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Horsepower Rating: 1 hp
• Number of Poles: 2
• Number of Wires: 3
• Dimensions: 3.281 inches height x 1.322 inches width x 1.067 inches depth
• NEMA Rating: 5-20R
• Material: Nylon and brass contacts
• Environmental Conditions: V2 flammability rating per UL94
• Dielectric Strength: 2000 VAC minimum
