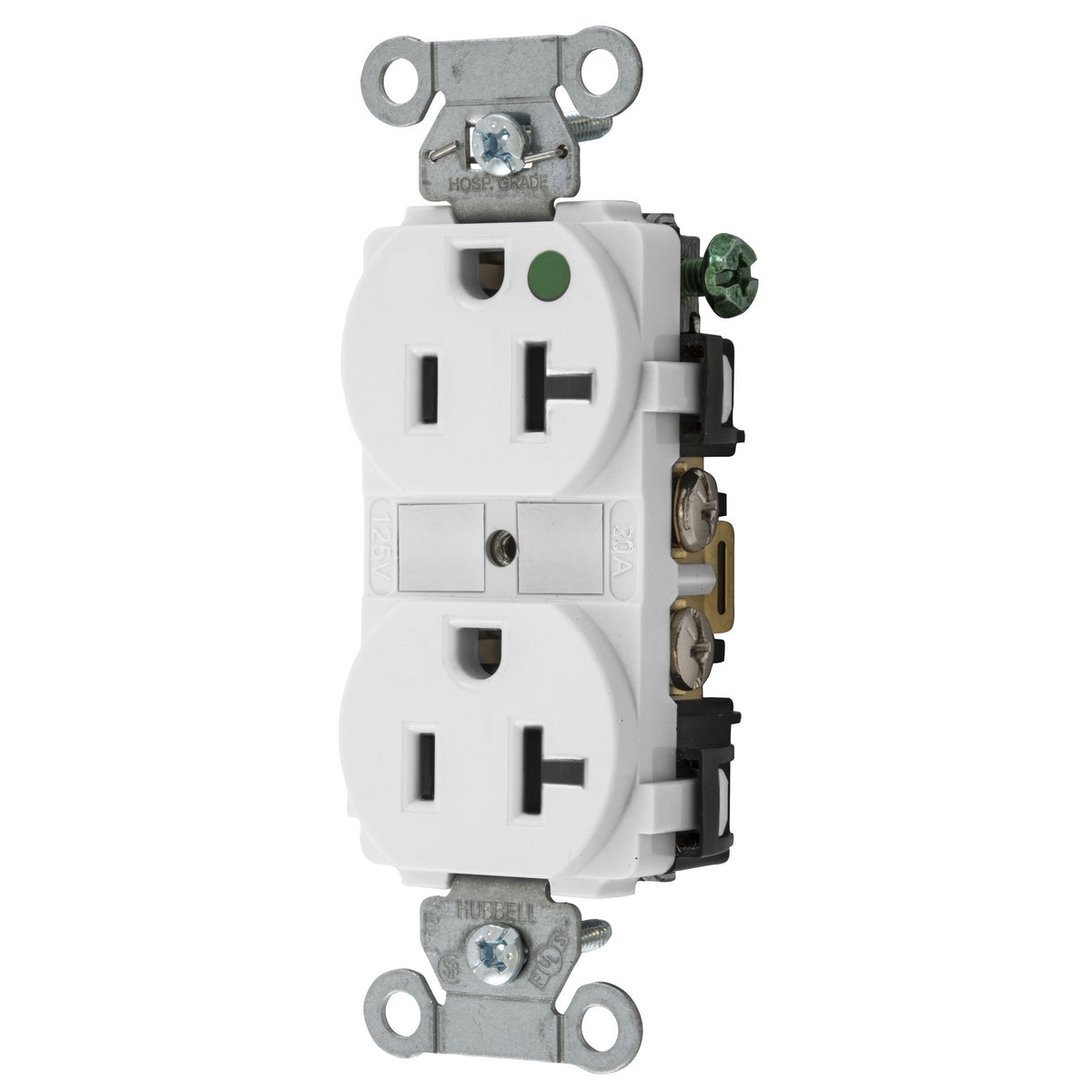

Hubbell Wiring 8300WHI 20A 125V HG RCPT

Product Description

The Hubbell Wiring 8300WHI is a 20 amp, 125 volt hospital grade duplex receptacle. This receptacle features a standard NEMA 5-20R configuration, designed for reliable electrical connections in various settings.

• Two-pole, three-wire grounding design
• Compatible with 12 to 10 AWG wire sizes
• Constructed from nylon and PBT materials

Product Highlights

This Hubbell-Pro receptacle is suitable for heavy-duty applications, providing a maximum load capacity of one horsepower and operating efficiently across temperature ranges from minus forty to seventy-five degrees Celsius.

Product Information

Standard Information

• Brand: Hubbell Wiring
• MPN: 8300WHI

Technical Specifications

• Voltage Rating: 125 Volt AC
• Current Rating: 20 Amp
• Dielectric Strength: 2000 Volt Minimum
• Material: Nylon Face, PBT Base
• Dimensions: 1.569 inches width x 1.147 inches depth x 3.281 inches height
• NEMA Configuration: NEMA 5-20R
• Environmental Conditions: V2 flammability rated per UL94
• Wire Size Compatibility: 12-10 AWG
