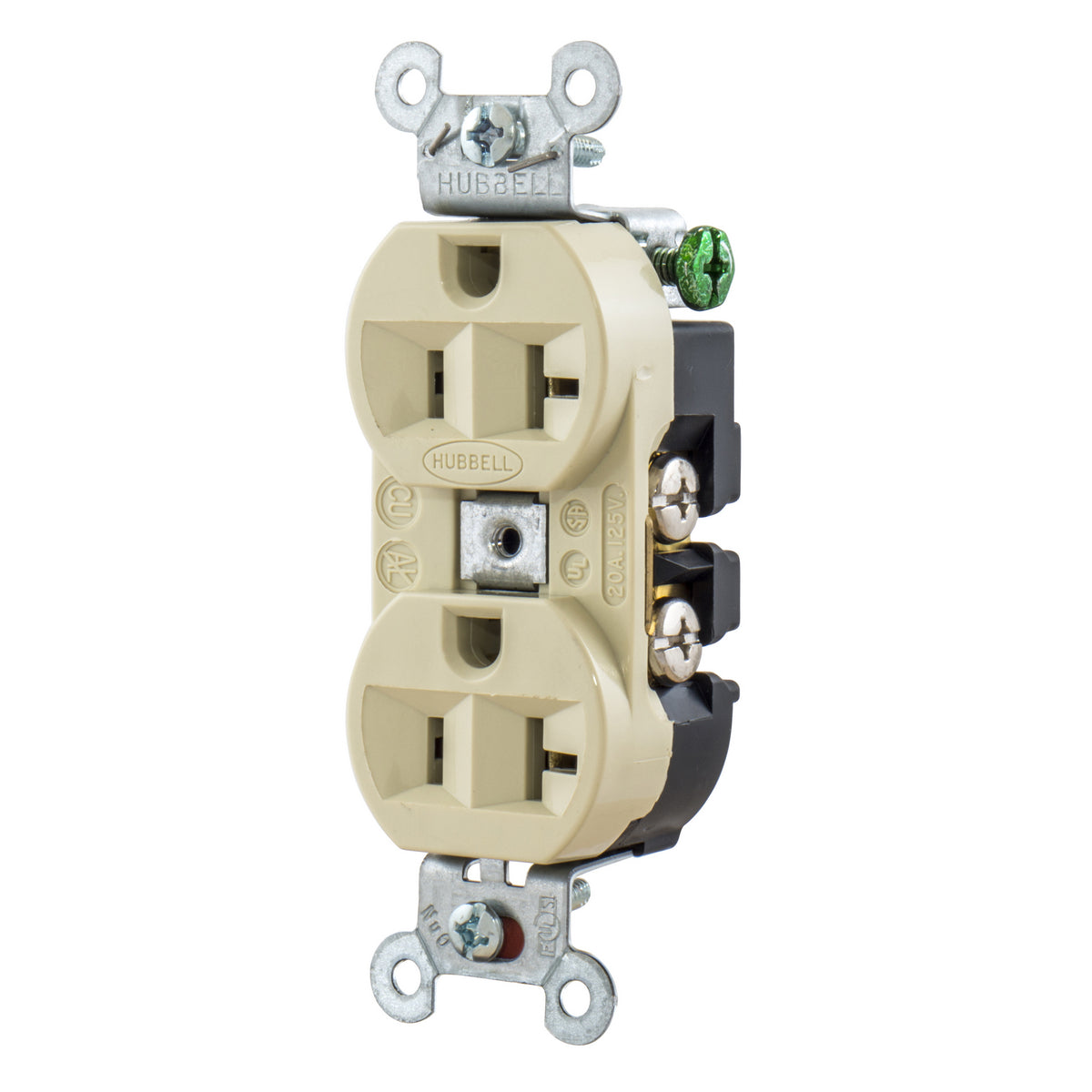

Hubbell Wiring 5362I Heavy Duty Straight Blade Duplex Receptacle 20A 125V NEMA 5-20R

Product Description

The Hubbell Wiring Device-Kellems 5362I is a heavy-duty straight blade duplex receptacle designed for robust industrial use. This receptacle operates on 125 VAC with a current rating of 20 A. It features a 2-pole, 3-wire configuration and is rated NEMA 5-20R. Its durable construction ensures reliable performance in demanding environments.

• Heavy duty design suitable for commercial and industrial settings.
• Temperature rating from minus forty to seventy-five degrees Celsius.
• Back and side wired for flexible installation options.

Product Highlights

This receptacle is built for safety and reliability, utilizing brass contacts for excellent conductivity and a galvanized steel strap for secure mounting.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: 5362I

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Horsepower: 1 hp
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: 5-20R
• Dimensions: 3.28 in H x 1.41 in W
• Material: Composite/Thermoplastic
• Color: Ivory
• Temperature Rating: -40 to 75 deg C
• Standards: UL 498, CSA C22.2 No. 42
