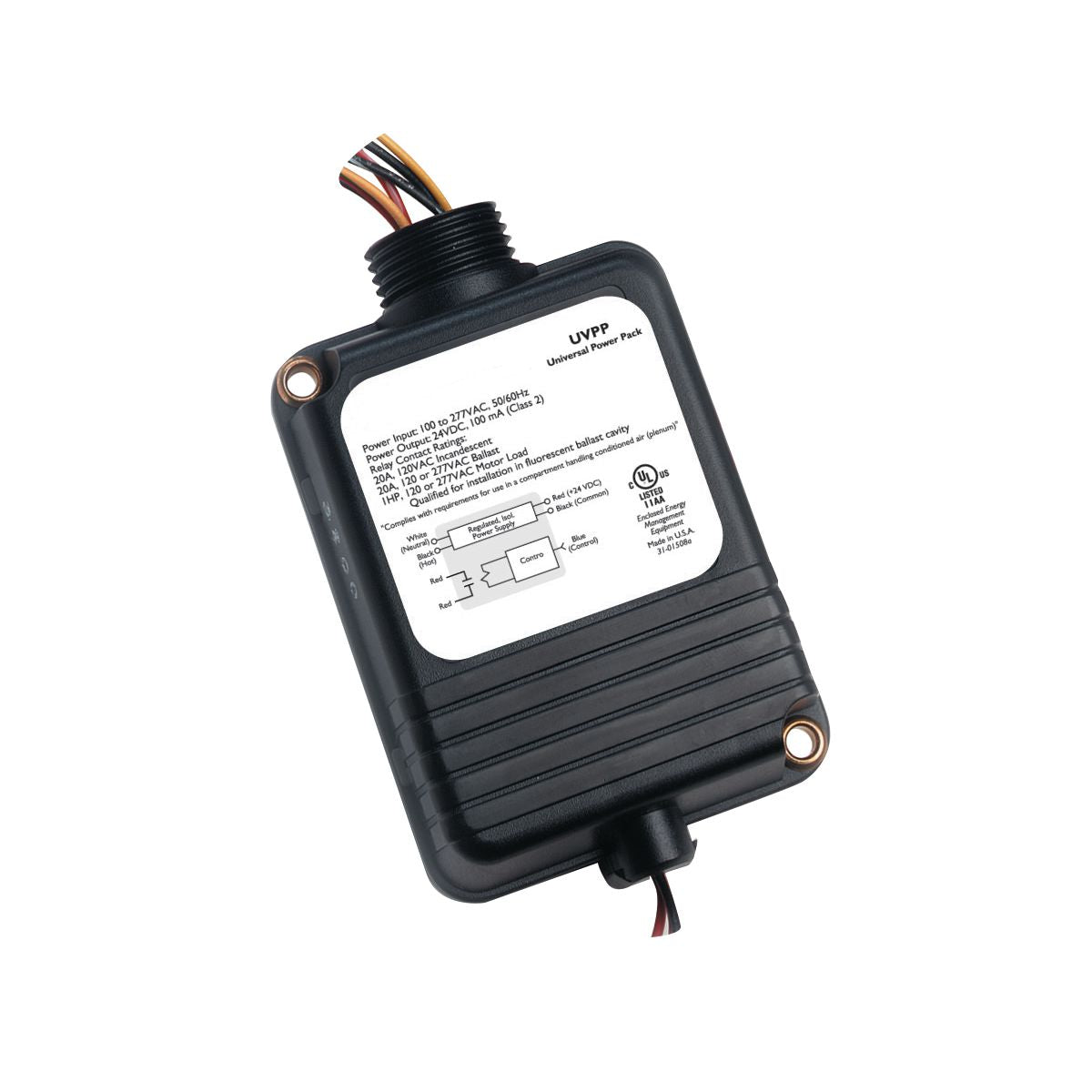

Hubbell UVPP Universal Voltage Power Supply 1 Hp 20 Amp

Product Description

The Hubbell UVPP is a universal voltage power supply designed for low-voltage occupancy sensors. This self-contained transformer and relay supports automatic voltage detection within 100 to 277 VAC range, eliminating the need for voltage-specific power packs. It switches electrical loads up to 20 amps and features zero arc point switching.

• Automatic voltage detection
• Maximum of 20 A electrical load switching capability
• Regulated 24VDC current; 150mA output
• Zero arc point switching

Product Highlights

The UVPP power pack is plenum rated and can be mounted inside or outside a junction box, or inside a fixture.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: UVPP
• Country of Origin: Mexico

Technical Specifications

• Our Part No: BSF-NX-UVPP
• Mfr Part #: UVPP
• Manufacturer Material Code: NA
• Fixture Type: Emergency
• Lighting Load Max: 20A
• Input Voltage: 100 to 277 VAC
• Dimensions: 3.69" H x 2.33" W x 1.36" D with a 0.50 threaded nipple
• Features: Temperature Range (32 to 100 F)
• Product Data Sheet: See PDF Link Provided
• Warranty: Manufacturer's
• Case Size: ea
• Alternative Keywords: Hubbell Wiring Device - Kellems UVPP
• Control: On/Off
• Country of Origin: MX
• Frequency Rating: 50/60 Hz
• Environmental Conditions: Indoor
• Humidity: 0 to 95% Non-Condensing
• Mounting: Junction box
• Operating Temperature: 32 to 104 °F
• Type: Universal Voltage
• UNSPSC: 39112402
• UPC 11: 64018180168
• UPC 12: 64018180168
• Brand: Hubbell Control Solutions
• Manufacturer: Hubbell
• Amperage Rating: 150 mA
• Output Voltage: 24 VDC
• Relay Rating: 20 A, 1 hp
• Amperage: 20 Amp
• Material: Plastic
• Temperature Rating: 32 - 104 degrees F
• Voltage: 100-277 VAC
• Product UPC: 64018180168
• Used With: Low Voltage Occupancy Sensors
• Weight: 0.5 lb
• Height: 2.3 Inch
• Length: 4.6 Inch
• Warranty Length: 5 yr
• Width: 3.300 in
• Certifications & Compliance: Prop 65 Warning
