Hubbell USB20AW Wiring USB20AW RCPT DUP 20A125V 3.1A5V USB PORT A WH

Product Description

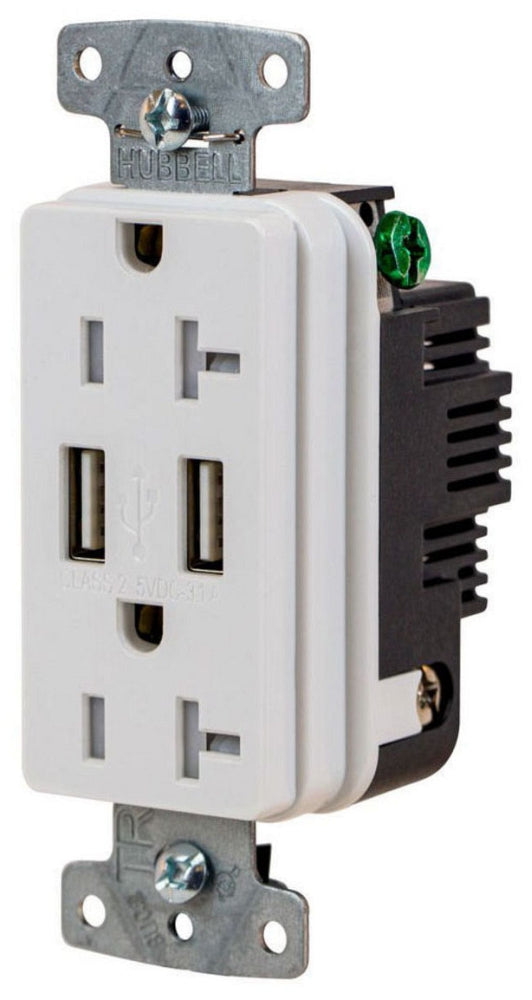

The Hubbell USB20AW is a duplex grounding USB charger receptacle designed for high power applications. It features a standard tamper-resistant design with a maximum rating of 20 Amps at 125 Volts. This receptacle includes two Type A USB ports capable of providing 3.1 Amps at 5 Volts for efficient charging of devices.

• High power USB charger with two USB ports
• Meets UL standards for safety and quality
• Compact design fits in standard wall boxes

Product Highlights

This product is suitable for indoor applications and operates effectively within a temperature range of -40 to 75 degrees Celsius.

Product Information

Standard Information

• Brand: Hubbell
• MPN: USB20AW

Technical Specifications

• Electrical Ratings: 125 VAC, 20 A, 1815 W
• USB Quantity: 2
• USB Rating: 5 VDC, 3.1 A
• Size: 4.19 inches L x 1.72 inches W x 1.81 inches H
• Connection: Screw Terminal
• Mounting: Threaded
• Material: Composite
• Number of Poles: 2
• Number of Wires: 3
• Phase: 1
• Standards/Approvals: UL 498, cULus Listed, UL 1310, UL94 V-2 Flammability Rating
