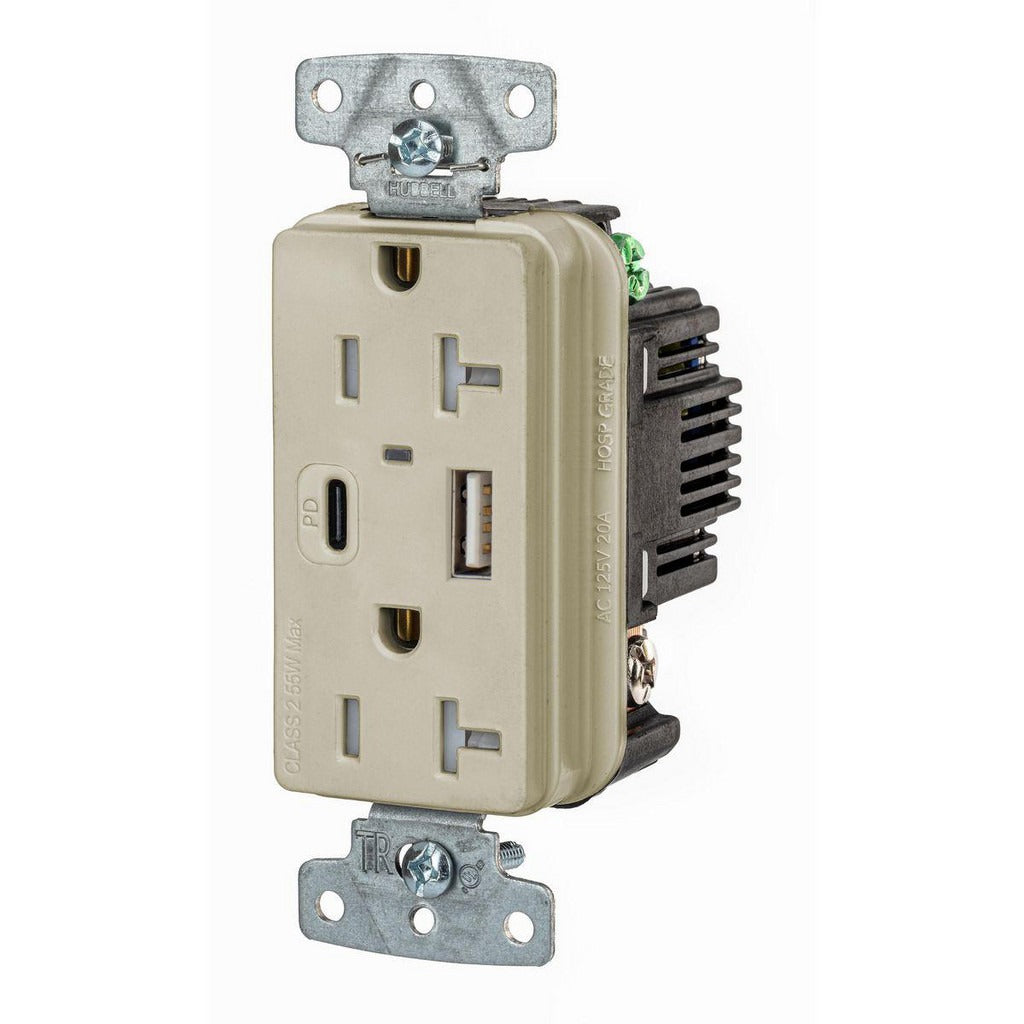

Hubbell USB20ACPDI Usb Receptacle 20A 125V Tamper-resistant

Product Description

The HUBBELL WIRING DEVICE-KELLEMS USB20ACPDI is a commercial-grade, tamper-resistant duplex receptacle with two integrated USB charging ports. Rated at 20 amps and 125 volts with a NEMA 5-20R configuration, it delivers up to 1.5 amps of USB charging current while maintaining full AC outlet functionality on both receptacles. The device meets USB PD 3.0 and USB BC1.2 standards, making it suitable for fast-charging compatible devices. Licensed electricians install this unit in commercial and light-industrial settings where device charging at the outlet is required without sacrificing a standard AC port.

This receptacle is intended for commercial-grade installations in outlet boxes using standard screw mounting. The ivory housing is constructed from RTP and thermoplastic receptacle material rated for typical commercial wall-outlet environments. Wiring connections are made via back-wired or side terminal screws, accommodating standard branch-circuit wiring practices. The built-in power indicator provides at-a-glance confirmation that the circuit is live. Applications include office build-outs, hospitality spaces, healthcare facilities, and other commercial environments where NEC Section 406.9 tamper-resistant requirements apply.

Key Features

• Two USB Type-A ports rated at 1.5A charging current, compliant with USB PD 3.0 and USB BC1.2
• Tamper-resistant shutters meet NEC Section 406.9 requirements for commercial and healthcare occupancies
• NEMA 5-20R duplex configuration at 20A and 125V for standard commercial branch circuits
• Multiple wiring options: back-wired and side terminal screw connections
• Integrated power indicator confirms live circuit status at a glance
• RTP housing and thermoplastic receptacle material rated for commercial-grade durability

Compatibility

Designed as an OEM-style commercial replacement receptacle for standard single-gang outlet boxes requiring a NEMA 5-20R tamper-resistant device with integrated USB charging capability.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the breaker panel and verify absence of voltage with a meter before beginning wiring. Secure the device to the outlet box using the provided screw mount hardware and confirm all terminal connections are fully seated before restoring power. Do not exceed the 20A branch-circuit rating for the installed wiring.
