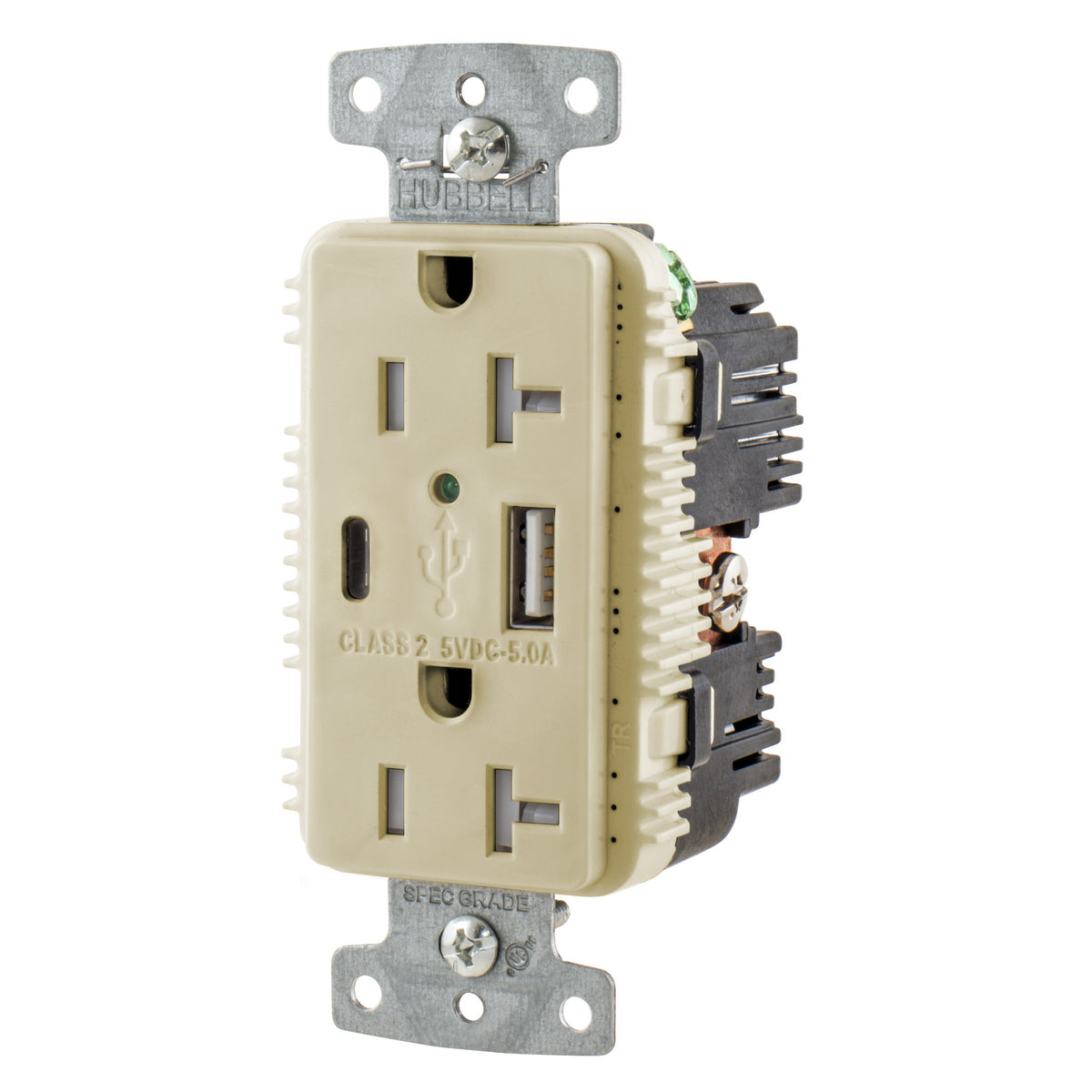

Hubbell USB20AC5I USB Charger Receptacle 20A 125V 5A 5V USB PORT

Product Description

The Hubbell USB20AC5I is a USB charger receptacle designed for versatility and ease of use. This duplex grounding standard tamper-resistant receptacle features both Type-A and Type-C USB connections. It supports a maximum electrical rating of 20 amps and 125 volts. The USB ports provide five amps at five volts, allowing for efficient charging of mobile devices.

• Compatible with Type-A USB and Type-C USB cables.
• Commercial grade with robust construction for frequent use.
• Environmental rating from -40 to 75 degrees Celsius.

Product Highlights

This product is ideal for residential and commercial applications, providing the convenience of USB charging alongside standard electrical connections.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: USB20AC5I

Technical Specifications

• Electrical Ratings: 125 VAC, 20 A, 2500 W
• Size: 1.75 inches W x 1.82 inches D x 3.28 inches H
• USB Type: Type-A USB 2.0/C
• USB Rating: 5 A, 5 VDC
• Number of Poles: 2
• Number of Wires: 3
• Connection: Screw Terminal
• Material: Composite
• Grade: Commercial
• Environmental Conditions: -40 to 75 degrees Celsius Operating, NEMA 5-20R Enclosure
• Application: Dry Location, Indoor, USB Charging, Power, Commercial, Industrial, Home
• Standards/Approvals: cULus Listed, UL 498, CSA Certified
