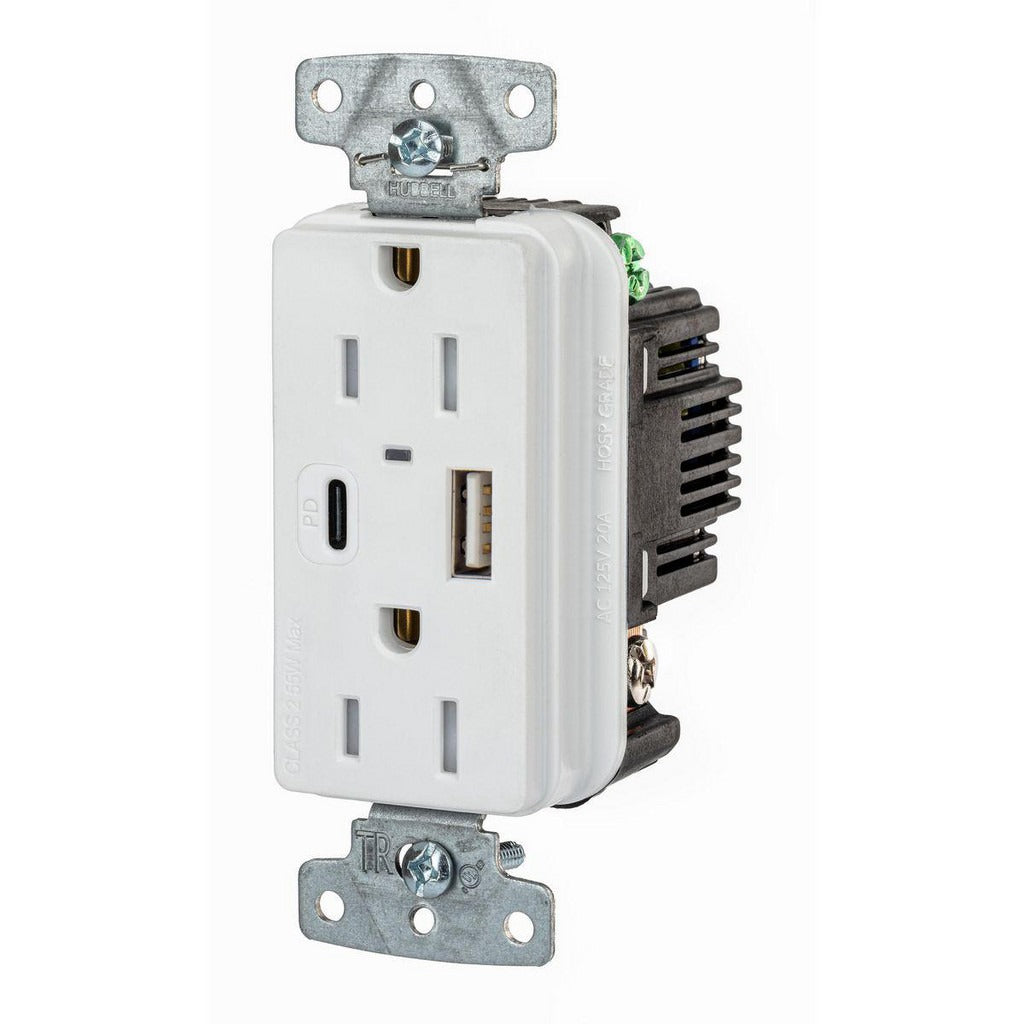

Hubbell USB15ACPDW Usb Receptacle 15A 125V 2-port White

Product Description

The HUBBELL WIRING DEVICE-KELLEMS USB15ACPDW is a commercial-grade, tamper-resistant duplex receptacle with two integrated USB charging ports. Rated at 15 amps and 125 volts with a NEMA 5-15R configuration, it delivers up to 1.5 amps of USB charging current and meets USB PD 3.0 and USB BC1.2 standards. The built-in power indicator confirms active circuit status at a glance. Constructed with a thermoplastic receptacle body and RTP housing, this unit is engineered for durability in commercial outlet-box installations. Licensed electricians install this device as a direct upgrade to standard duplex receptacles where device charging at the outlet is required.

This receptacle is suited for commercial and light institutional applications where both standard AC outlet access and USB charging capability are needed at a single outlet location. Typical installation scenarios include office spaces, hotel rooms, conference areas, and similar environments where end users regularly charge USB-powered devices. The tamper-resistant shutter mechanism makes it appropriate for locations requiring compliance with NEC Section 406.9, such as spaces accessible to children or the general public.

Key Features

• Dual USB charging ports with 1.5 amp output, supporting USB PD 3.0 and USB BC1.2 protocols
• Tamper-resistant shutter mechanism meets NEC Section 406.9 requirements
• NEMA 5-15R duplex configuration provides two standard AC receptacles alongside USB ports
• Built-in power indicator light confirms energized circuit status
• Back, side, and terminal screw wiring options for installation flexibility
• RTP housing and thermoplastic receptacle material rated for commercial-grade use

Compatibility

Designed as an OEM-style replacement or upgrade receptacle for standard single-gang outlet boxes in commercial electrical installations.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify absence of voltage with a meter before beginning work. The device accepts back-wired, side-wired, and terminal-screw connections — confirm wiring method matches the existing branch circuit conductor configuration. Screw-mount to a standard outlet box using the provided mounting hardware.
