Hubbell UNY50 UNY Male/Female Union 1/2 inches UNY50

Product Description

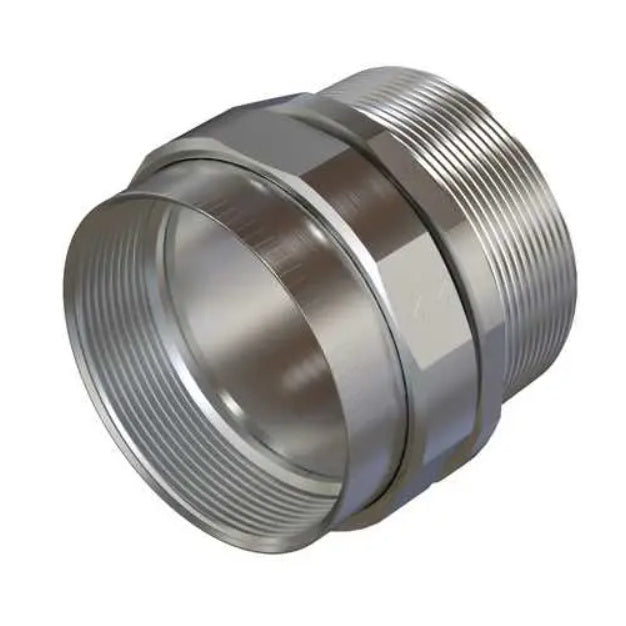

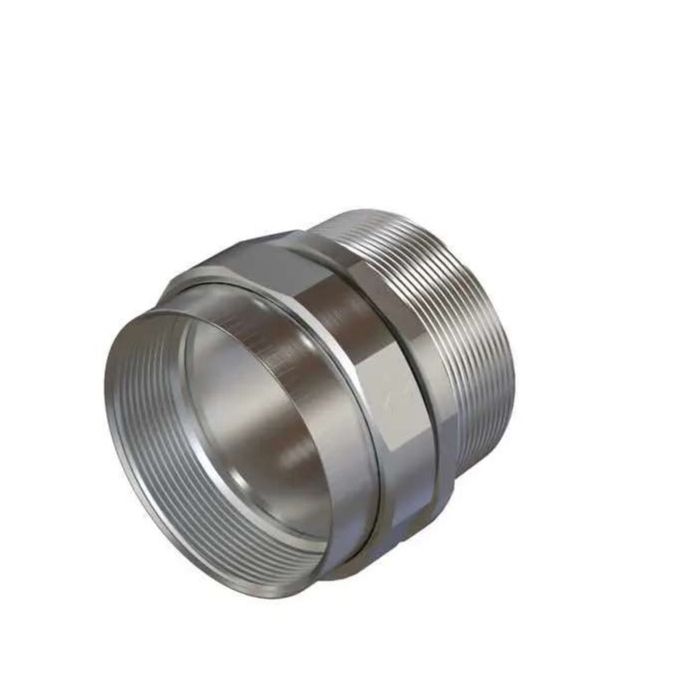

The HUBBELL UNY50 is a hazardous location union made of zinc-plated steel with a 1/2" male/female connection. Its compact design offers a lighter weight and smaller profile. The extruded bar stock construction provides superior threads and twice the tensile strength. It is used to connect two pieces of conduit or attach conduit to junction boxes.

• Compact size for lighter weight and smaller profile
• Extruded bar stock construction provides superior threads
• Male to Female union has nonremovable nipple to ensure tight seal

Product Highlights

The HUBBELL UNY50 union is ideal for connecting conduit in hazardous locations, offering a robust and space-saving solution.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: UNY50
• Country of Origin: USA

Technical Specifications

• Catalog Number: UNY50
• Finish Type: Zinc Plated
• Hex Size: 1.31 in
• Material: 12L14 Steel
• Series: UNY Series
• Type: Male/Female, Hazardous Location
• UPC: 783936183947
• Diameter: 1.38 in
• Hub Size: 1/2"
• Length: 2.06 in
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups A, B, C, D Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• Nema Rating: 4
• Suitable For Use With: IMC/Rigid Conduit
• Manufacturer: Hubbell
• Finish: Electro Plated Zinc
