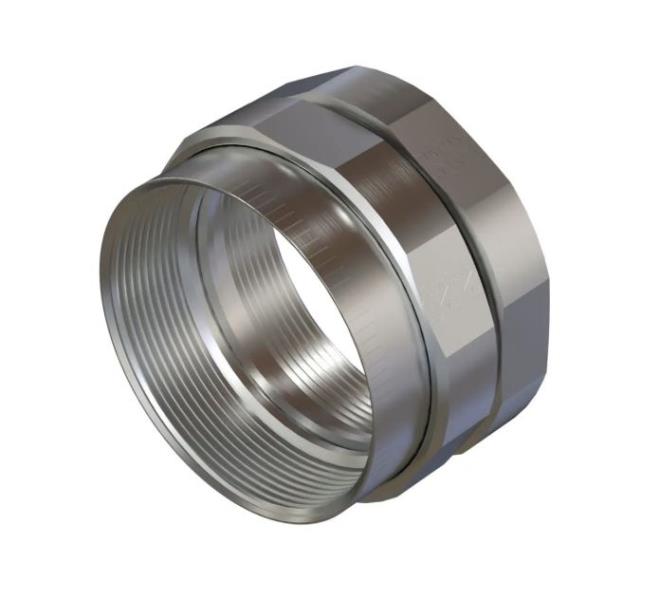

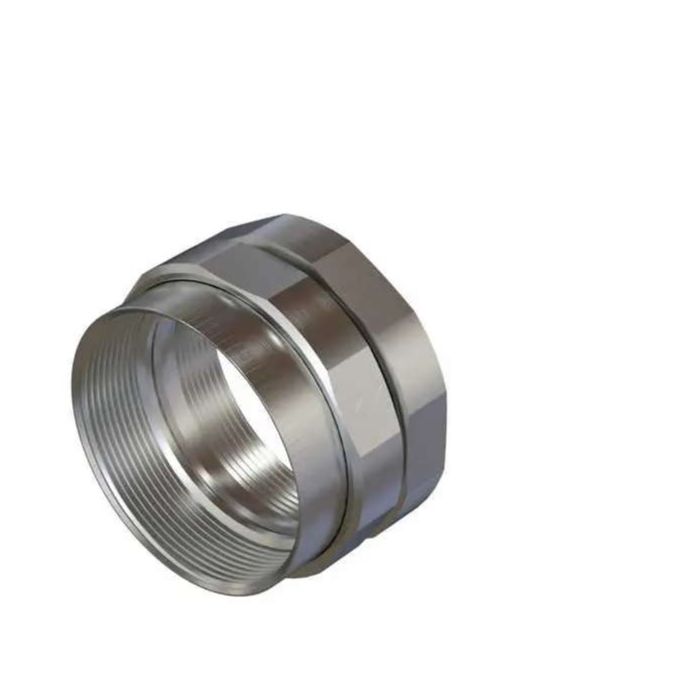

Hubbell UNF75AL Hazardous Location Union Aluminum 3/4 inches Female/Female REPLACES GUF-2

Product Description

The HUBBELL UNF75AL is a hazardous location union made of aluminum with 3/4" female/female connections. Its compact design provides a lighter weight and smaller profile. The extruded bar stock construction offers superior threads and twice the tensile strength. It is used to connect two pieces of conduit or attach conduit to junction boxes.

• Compact size for lighter weight and smaller profile
• Extruded bar stock construction provides superior threads
• Permits removal of equipment without turning or removal of conduit

Product Highlights

The HUBBELL UNF75AL union is ideal for connecting conduit in hazardous locations, offering a robust and space-saving design.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: UNF75AL
• Country of Origin: USA

Technical Specifications

• Catalog Number: UNF75AL
• Finish Type: Natural
• Hex Size: 1.44 in
• Material: Aluminum
• Series: UNF Series
• Type: Female to Female, Hazardous Location
• UPC: 783936183855
• Diameter: 1.5 in
• Hub Size: 3/4"
• Length: 1.56 in
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups A, B, C, D Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• Nema Rating: 4
• Suitable For Use With: IMC/Rigid Conduit
• Manufacturer: Hubbell
• Category: Pipe and Coupling
