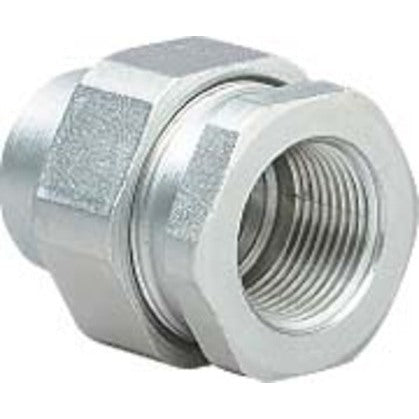

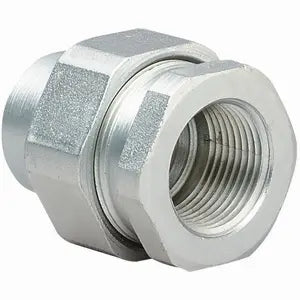

Hubbell UNF1 UN Series Iron Union Female/Female 1/2 inches

Product Description

HUBBELL UNF1 is a UN Series Female to Female Conduit Union designed for use with IMC and Rigid Conduit. It features steel construction and an electro-plated zinc finish for durability and corrosion resistance. This conduit union is threaded for rigid conduit or IMC with tapered NPT threads.

• Threaded for rigid conduit or IMC
• Tapered threads (NPT)
• Strong and durable construction

Product Highlights

Suitable for both indoor and outdoor applications, providing a strong and reliable connection for electrical installations in demanding environments.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: UNF1

Technical Specifications

• Application: UNF unions are used to connect two pieces of conduit or attach conduit to junction boxes, fittings, or devices. Permits removal of equipment without turning or removal of conduit.
• Catalog Number: UNF1
• EU RoHS Indicator: Contact Manufacturer
• Finish Type: Zinc Plated
• Material: Steel
• Series: UN Series
• Type: Female to Female Union
• UPC: 783936010458
• Height: 2 in
• Hub Size: 1/2"
• Length: 2 in
• Weight: 0.38 lb
• Width: 2 in
• CSA File Number: LR11716
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups A, B, C, D Class I, Zones 1 & 2, Groups IIC, IIB, IIA Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• UL File Number: E10514
• Union Type: Female to Female
• Finish: Electro-Plated Zinc
• For Use With: IMC/Rigid Conduit
• Thread Type: Tapered (NPT)
