Product Description

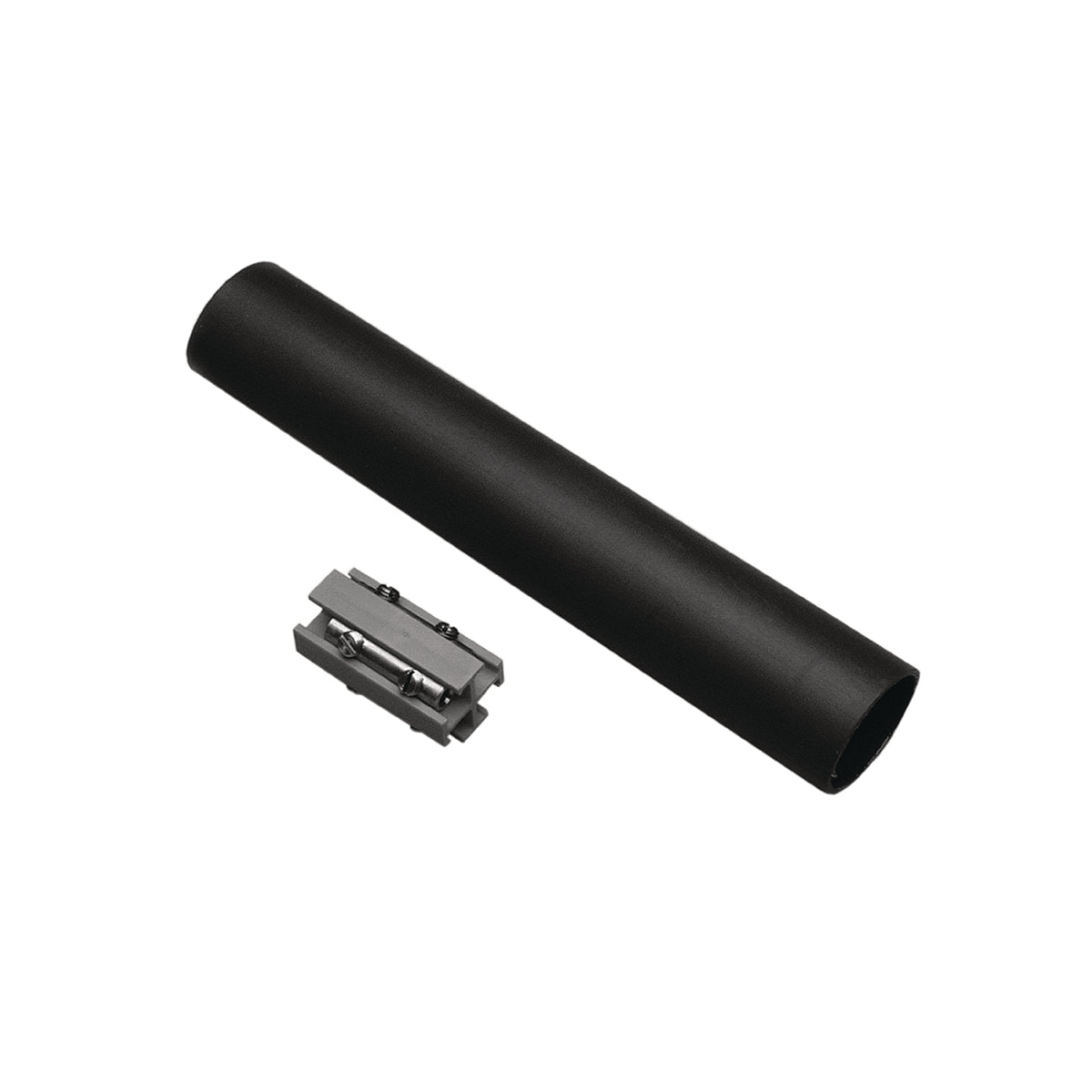

The Hubbell UGSKIT2 is an underground watertight cable splice kit designed for aluminum and copper stranded conductors. It accommodates sizes from eight to two AWG and includes two screws for ease of installation.
- Suitable for direct burial applications.
- Includes heat shrink sleeves for a secure and waterproof seal.
- Compatible with aluminum and copper conductor types.
Product Highlights
This cable splice kit is ideal for outdoor and underground use, ensuring long-lasting connections in harsh environments.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
MPN: UGSKIT2
Technical Specifications
-
Application: For all aluminum or copper/aluminum combinations and UF direct burial
-
Conductor Size: 8 to 2 AWG
-
Conductor Type: Aluminum/Copper/Stranded
-
Dimensions: 1.38 inches long
-
Includes: Two slotted hex screws, two heavy wall heat shrink sleeves
-
Material: Aluminum
-
Number of Screws: 2
-
Series: UGS
-
Standards/Approvals: RoHS Compliant, CSA Certified, UL 486D
-
Temperature Rating: 90 degrees Celsius
-
Voltage Rating: 600 VAC
