Product Description

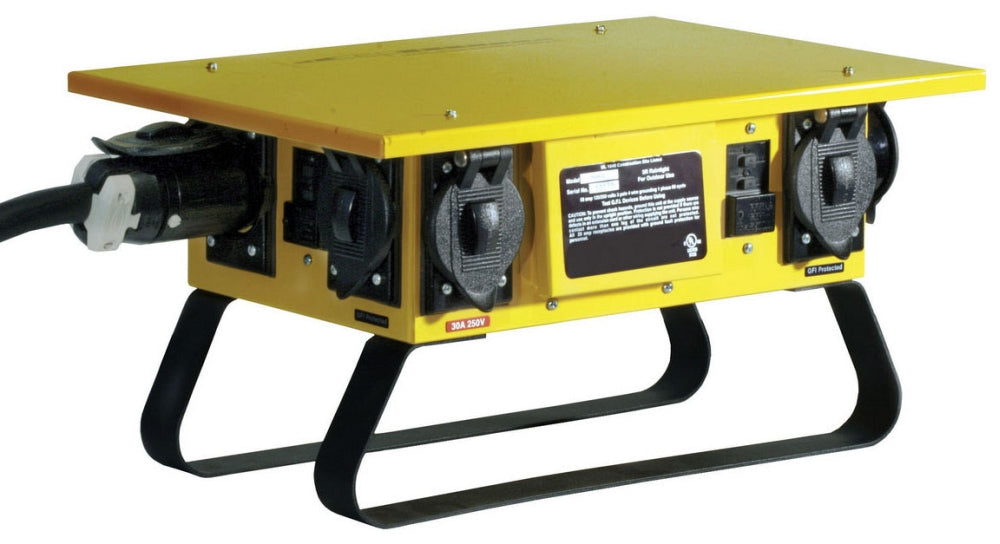

The Hubbell TPDL is a temporary power box designed for indoor and outdoor applications. This device operates at 120/240 VAC and provides a power rating of 12500 W. It features 2 poles and 3 wires for effective power distribution.
- Includes (6) 20 A, 125 VAC and (1) 30 A, 250 VAC Twist-Lock Grounding Receptacles
- NEMA 3R enclosure made from durable thermoplastic material
- Compact dimensions at 21.5 inches long, 14.5 inches wide, and 12.52 inches high
Product Highlights
This unit ensures reliable power supply for temporary setups in various environments.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Manufacturer Part Number: TPDL
Technical Specifications
-
Amperage Rating: 50 A
-
Application: Indoor/Outdoor and Temporary Power Distribution Applications
-
Color: Yellow
-
Dimensions: 21.5 inches L x 14.5 inches W x 12.52 inches H
-
Enclosure: NEMA 3R
-
Includes: (6) 20 A, 125 VAC and (1) 30 A, 250 VAC Twist-Lock Grounding Receptacles
-
Material: Thermoplastic
-
Number of Poles: 2
-
Number of Wires: 3
-
Power Rating: 12500 W
-
Standards/Approvals: UL 498|UL 943/1640
-
Type: 1-Phase Grounding Multi-Outlet Non-NEMA Standard
-
Voltage Rating: 120/240 VAC
