HUBBELL TP168F Vinyl Fork Terminal for 22-16 AWG

Product Description

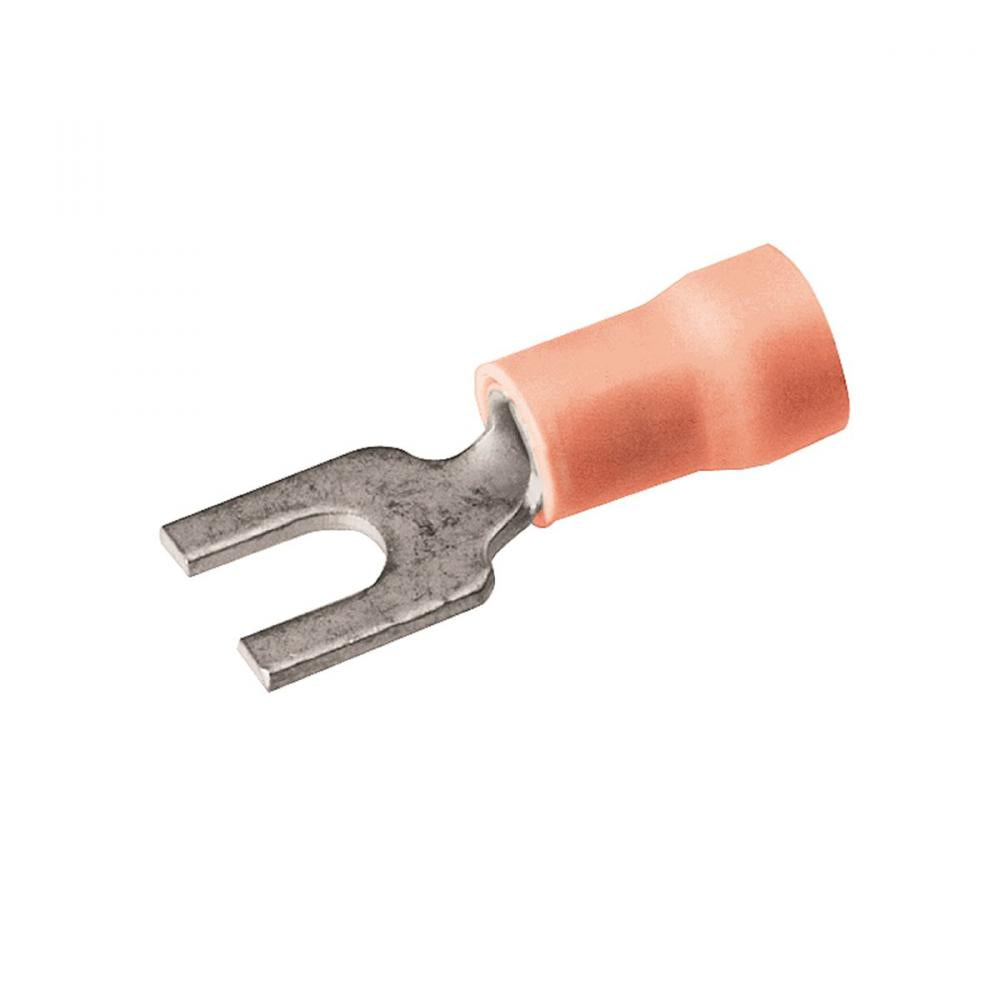

The HUBBELL TP168F is a fork tongue terminal suitable for wires sized 22-16 AWG. Made from pure copper, this terminal features a long brazed seam barrel with inner serrations designed in a V groove. The terminal is insulated with vinyl and has a tin plating, which adds to its corrosion resistance. It is compatible with a #6 to #8 stud size and allows for quick installation. Only the screw needs to be loosened for termination. The terminal supports voltage up to 600V and operates effectively at a maximum temperature of one hundred five degrees Celsius.

• Constructed from pure electrolytic copper.
• Features a fork tongue design for fast installation.
• Tin plating enhances corrosion resistance.

Product Highlights

High-quality fork terminal for electrical connections.

Product Information

Standard Information

• Brand: HUBBELL
• MPN: TP168F

Technical Specifications

• AWG: 22-16
• Stud Size: #6-#8
• Insulation: Vinyl
• Plating: Tin
• Voltage: 600 V
• Operating Temperature: 105 °C
