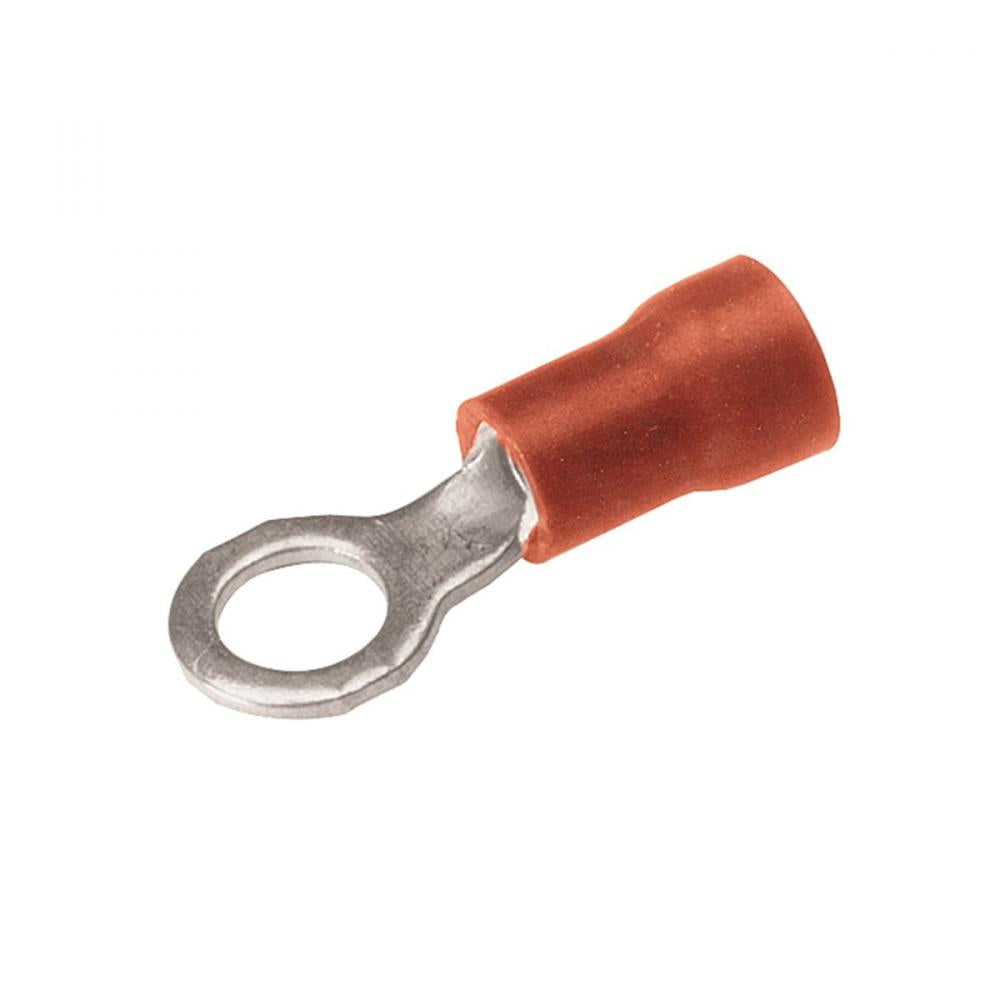

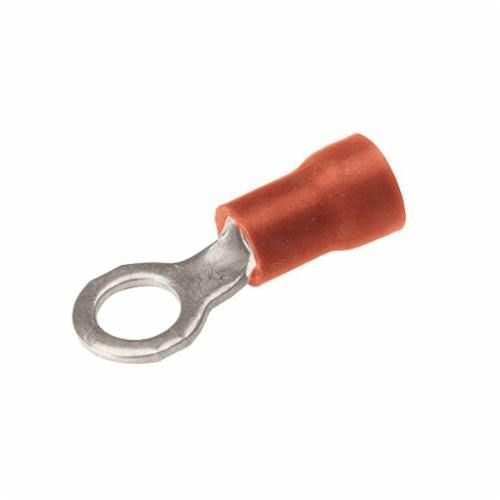

HUBBELL TP1610 Vinyl Ring Tongue Terminal 22-16 AWG #8-#10 Stud

Product Description

The HUBBELL TP1610 is a reliable vinyl ring tongue terminal. It is suitable for use with wire sizes 22 to 16 AWG and fits #8 to #10 studs. The terminal is made from copper and comes with vinyl insulation for safety and protection. The design supports easy wire insertion with a funnel entry and has deep V groove serrations for secure connections.

• Ring tongue design for secure connections
• Compatible with 22-16 AWG wire sizes
• Vinyl insulation ensures electrical isolation

Product Highlights

This terminal is ideal for commercial and light duty industrial control and power circuit applications.

Product Information

Standard Information

• Brand: HUBBELL
• MPN: TP1610

Technical Specifications

• Conductor Size: 22 to 16 AWG
• Stud Size: NO 8-10
• Material: Copper
• Insulation: Yes
• Voltage Rating: 600 VAC
• Application: For Commercial and Light Duty Industrial Control and Power Circuit Applications
• Standard & Approvals: UL 467, CSA Certified, RoHS Compliant
• Color Code: Red
• Type: Ring Tongue
• Series: TP
• Temperature Rating: 105 deg C
• Length: 0.85 inches
• Overall Length: 0.85 inches
• Conductor Type: Copper
