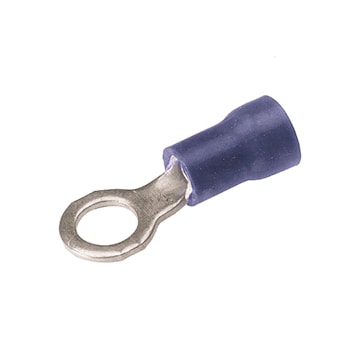

HUBBELL TP148 Vinyl Ring Terminal, 16-14 AWG, #6-#8 Stud

Product Description

The HUBBELL TP148 is a ring tongue terminal made for 16-14 AWG conductors and designed for #6-#8 studs. This terminal utilizes copper for conductivity, features vinyl insulation, and has a tin plating for added protection. It is ideal for commercial and light-duty industrial control and power circuit applications. The terminal’s funnel entry eases wire insertion, while the deep V groove serrations enhance grip inside the barrel. The expanded insulation support accommodates both standard and large wire diameters.

• Ring tongue terminal for 16-14 AWG conductors.
• Compatible with #6-#8 studs.
• Vinyl insulation with electro tin plating.

Product Highlights

This terminal is suitable for various commercial and industrial applications, ensuring reliable connections.

Product Information

Standard Information

• Brand Name: HUBBELL
• MPN: TP148

Technical Specifications

• Series: TP
• Type: Ring Tongue
• Conductor Size: 16 to 14 AWG
• Stud Size: #6-#8
• Voltage Rating: 600 VAC
• Insulation Material: Vinyl
• Material: Copper
• Finish: Electro Tin-Plated
• Insulation Diameter: 0.18 inches
• Tang Type: Ring
• Temperature Rating: 105 degrees C
• Wire Strip Length: 13/64 inches
• Overall Length: 0.85 inches
• Width: 0.31 inches
• Standards: UL 467 Listed
• Application: For commercial and light duty industrial control and power circuit applications
• Conductor Type: Copper
• Barrel Size: 0.26 inches L
• Tongue Size: 0.31 inches W x 0.03 inches THK
