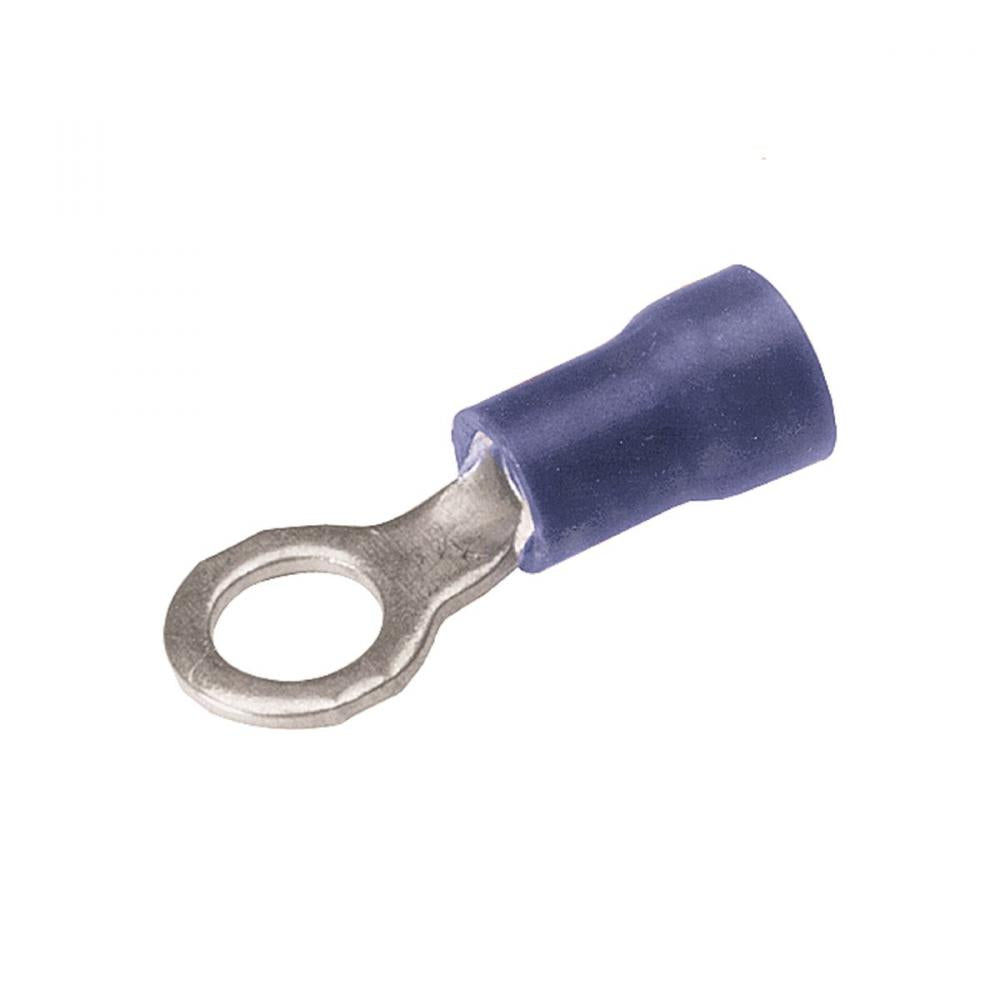

HUBBELL TP146 Vinyl Ring Terminal, 16-14 AWG, #4-#6 Stud

Product Description

The HUBBELL TP146 is a reliable ring tongue terminal suitable for wires ranging from sixteen to fourteen AWG. Designed to interface with #4 to #6 studs, this terminal is built from high-quality copper and includes a tin-plated finish for enhanced durability.

• Compatible with 16-14 AWG wires
• Designed for #4-#6 stud connections
• Vinyl insulation ensures safety and longevity

Product Highlights

This terminal is perfect for commercial and light-duty industrial control and power circuit applications.

Product Information

Standard Information

• Brand Name: HUBBELL
• MPN: TP146

Technical Specifications

• Conductor Size: 16-14 AWG
• Stud Size: 0.112 - 0.138 inches
• Voltage Rating: 600 V
• Insulation Material: Vinyl
• Material: Copper
• Finish: Tin Plated
• Tang Type: Ring
• Length: 0.80 inches
• Width: 0.25 inches
• Standards: UL 467, CSA Certified
• Application: Commercial and Light Duty Industrial Control and Power Circuit Applications
• Insulation Diameter: 0.18 inches
