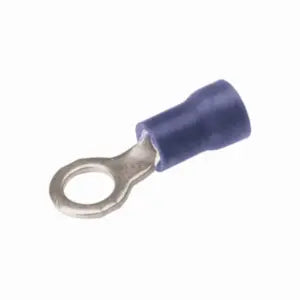

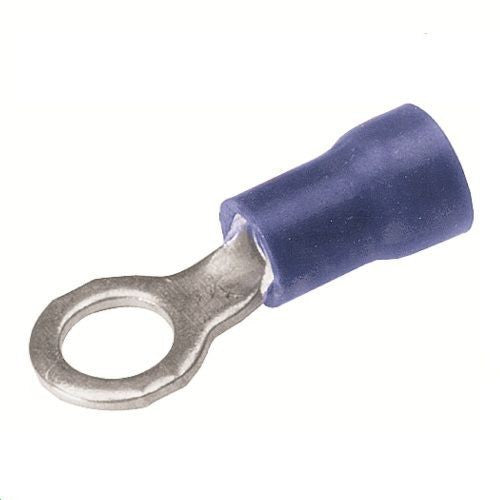

HUBBELL TP1410 Vinyl Ring Terminal for 16-14 AWG

Product Description

The HUBBELL TP1410 is a ring tongue terminal suitable for conductors ranging from sixteen to fourteen AWG. Made from copper with a tin-plated finish, it includes vinyl insulation for added durability. This terminal works well with stud sizes from eight to ten.

• Ring tongue terminal for sixteen to fourteen AWG conductors
• Vinyl insulated and constructed from tin plated copper
• Compatible with stud sizes eight to ten

Product Highlights

This terminal is ideal for various applications, including commercial and light-duty industrial control and power circuit tasks.

Product Information

Standard Information

• Brand: HUBBELL
• MPN: TP1410

Technical Specifications

• Terminal Type: Ring Tongue
• Conductor Size: 16 to 14 AWG
• Stud Size: #8 to #10
• Insulation: Vinyl
• Material: Copper
• Finish: Electrolytic TiN Plated
• Voltage Rating: 600 V
• Operating Temperature: 90 degrees C
• Standards: UL467
• UL Listed: Yes
• RoHS Compliance: Yes
• Application: For commercial and light duty industrial control
• Color: Blue
• Barrel Style: Shrouded
• Number of Holes: 1
• Cable Insulation Diameter Maximum: 0.18 inches
• Length: 0.85 inches
• Dimensions: 0.31 inches W x 0.03 inches THK
• Hole Size: 0.20 inches
