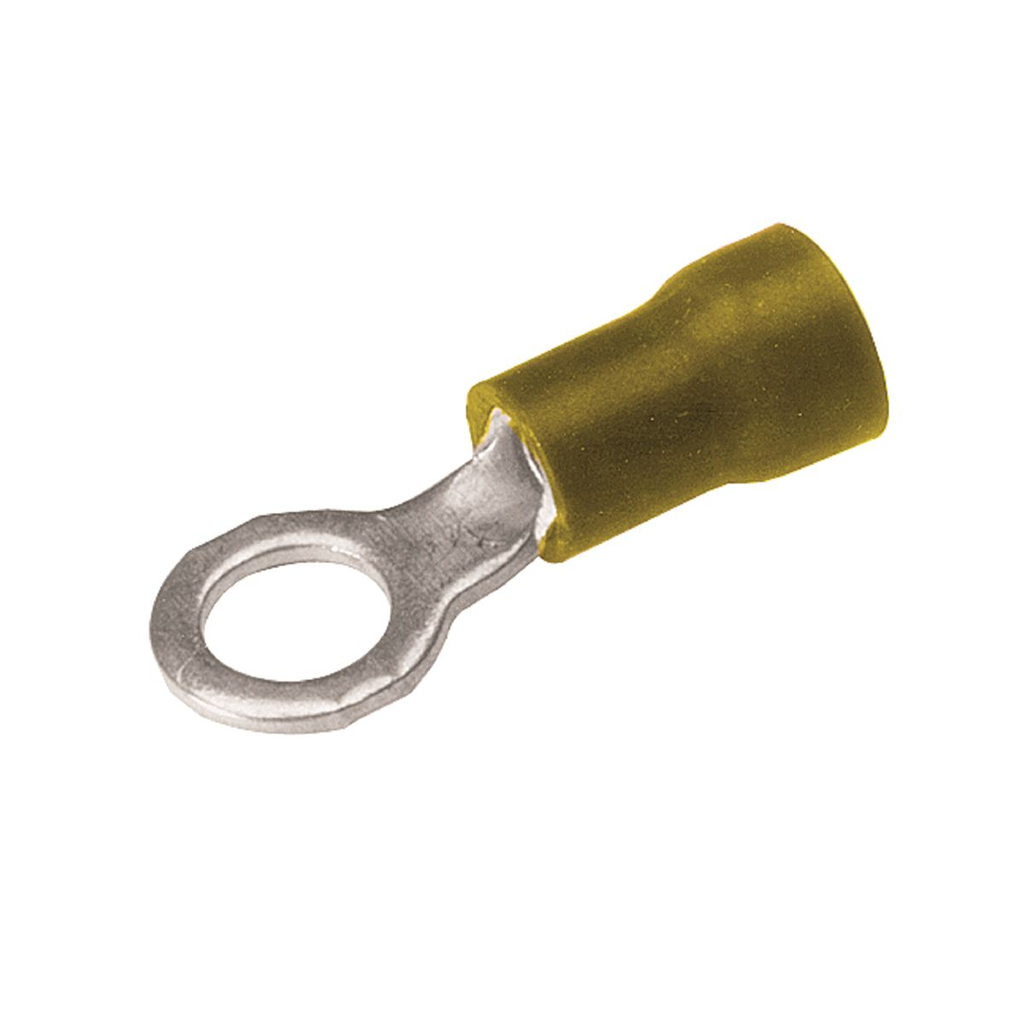

Hubbell TP106 Burndy Copper Terminal Ring Tongue 12-10 AWG #4-#6 Stud Vinyl Insulated

Product Description

The Hubbell TP106 is a copper terminal designed for ring tongue connections. This terminal is suitable for wire sizes between twelve and ten AWG. It has a stud size range of #4 to #6. The terminal features vinyl insulation and is tin plated for increased durability.

• Suitable for commercial and light-duty industrial control applications
• Utilizes pure electrolytic copper for maximum conductivity
• Electro-tin plating for corrosion resistance

Product Highlights

The TP106 copper terminal is designed for effective wire connection in various applications. It allows easy wire insertion with its funnel entry design.

Product Information

Standard Information

• Brand: Hubbell Incorporated
• Type: Ring Tongue

Technical Specifications

• Material: Copper
• Voltage Rating: 600 Volt
• Width: 0.31 inches
• Height: 0.28 inches
• Length: 0.95 inches
• Stud Size: 0.112 - 0.138 inches
• Cable Size: 12 - 10 AWG
• Insulation Type: Vinyl
• Color Coding: Yellow
• Country of Origin: USA
