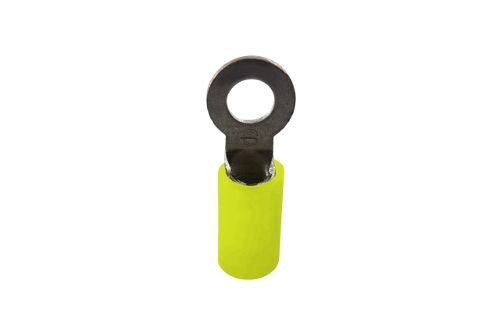

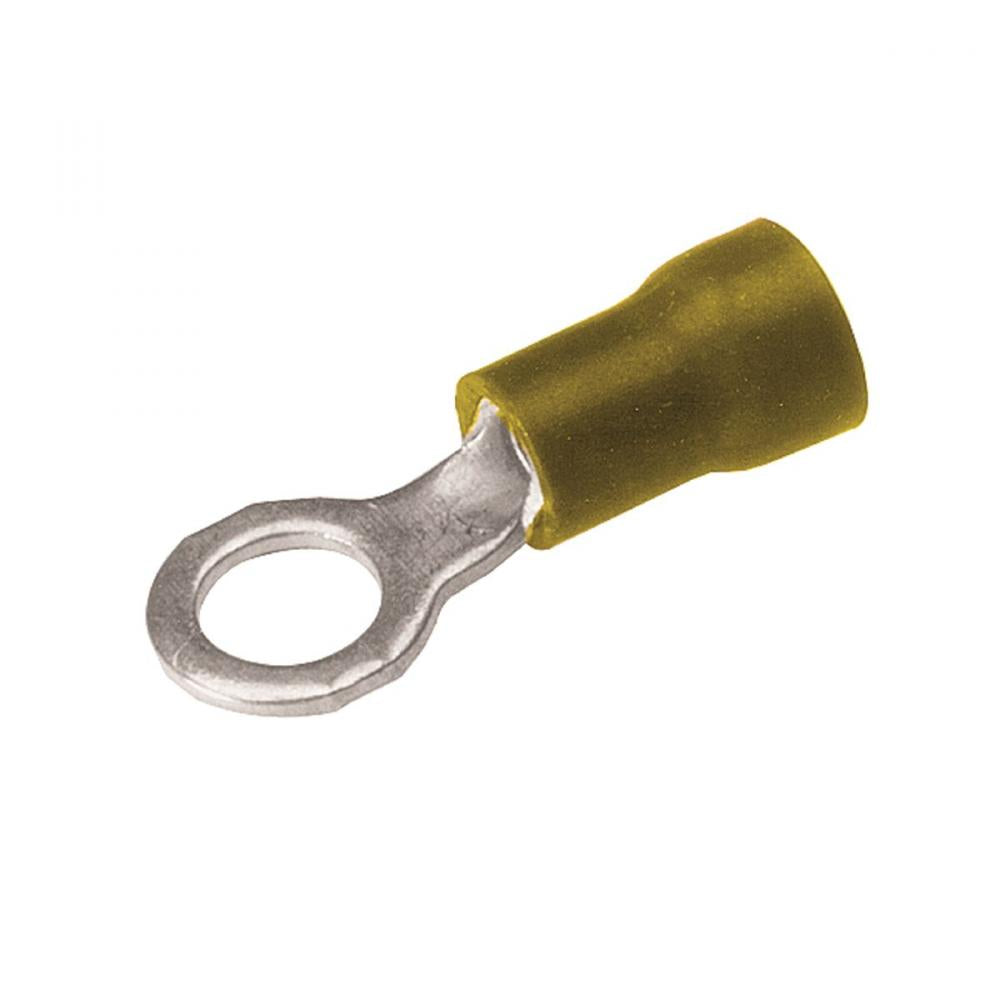

HUBBELL TP1038 Vinyl Ring Terminal for 12-10 AWG

Product Description

The HUBBELL TP1038 is a PVC insulated ring tongue terminal intended for 12 to 10 AWG conductors. It includes an insulation support that accommodates various wire sizes. Made from electrolytic copper, it ensures effective conductivity and reliable crimping. The inner barrel has deep V groove serrations to enhance holding strength. This terminal is rated for 600V and can withstand temperatures up to 105 degrees Celsius.

• Ring tongue terminal with PVC insulation
• Compatible with 12-10 AWG conductors
• Features funnel entry for easy wire insertion

Product Highlights

This terminal is designed for applications such as commercial and light-duty industrial control as well as power circuits.

Product Information

Standard Information

• Brand: HUBBELL
• MPN: TP1038

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Maximum Insulation Diameter: .260 inches
• Stud Size: 3/8 inches
• Length: 1.27 inches
• Width: .53 inches
• Voltage Rating: 600 VAC
• Temperature Rating: 105 degrees Celsius
• Material: Copper
• Color Code: Yellow
• Type: Ring Tongue
• Application: For commercial and light-duty industrial control and power circuit applications
• Standard & Approvals: UL 467, CSA Certified, RoHS Compliant
• Conductor Type: Copper
