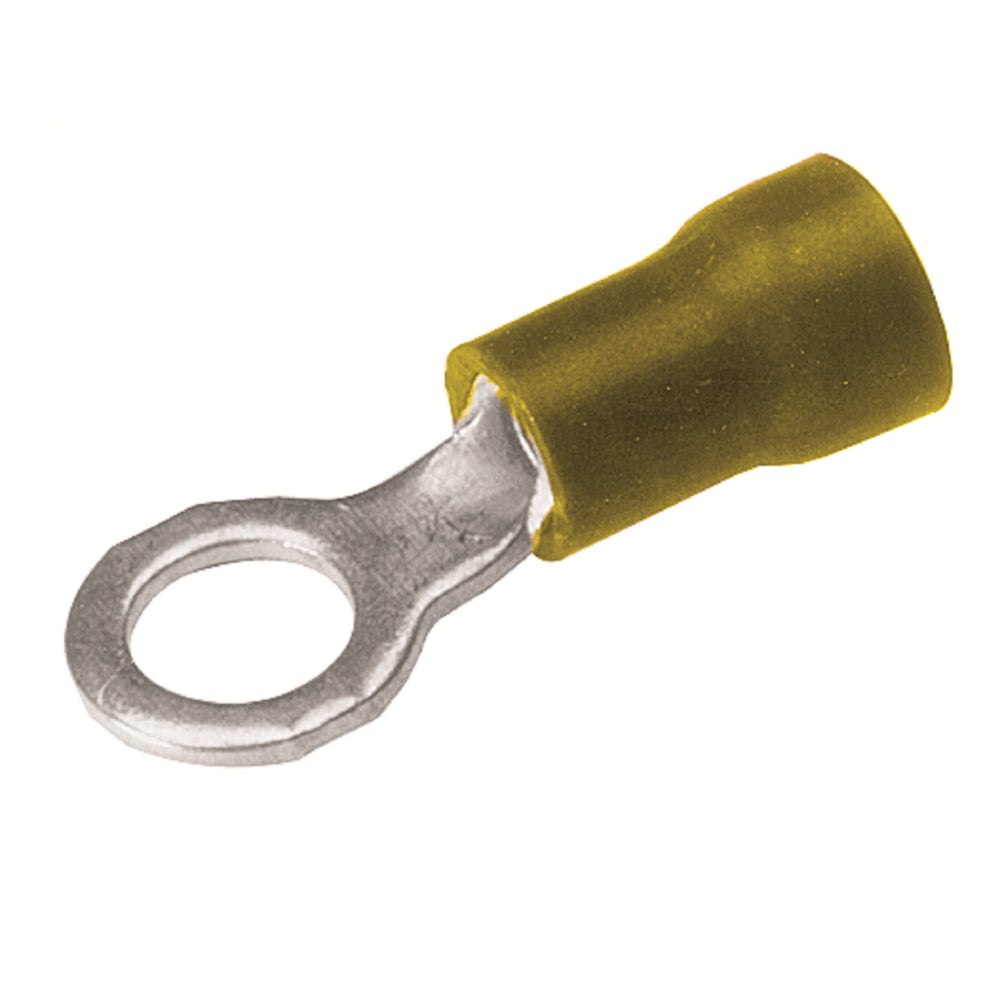

Hubbell TP1012 Ring Tongue Terminal, Polyvinylchloride, 600 Volts Max 105 Deg C Max

Product Description

The Hubbell TP1012 is a ring tongue terminal designed for wire connections in various electrical applications. It supports a maximum voltage of six hundred volts and can withstand temperatures up to one hundred five degrees Celsius. This terminal is ideal for both commercial and light-duty industrial control circuits.

• Suitable for cable sizes ranging from twelve to ten AWG.
• Features vinyl insulation for added protection.
• Tin electro-plated for improved conductivity and corrosion resistance.

Product Highlights

The Hubbell TP1012 terminal is designed for durability and reliability in electrical connections, particularly in power circuit applications.

Product Information

Standard Information

• Brand: Hubbell Incorporated
• Sub Brand: Burndy

Technical Specifications

• Type: Ring Tongue
• Length: 1.51 inches
• Cable Size: 12 - 10 AWG
• Stud Size: 0.5 inches
• Material: Copper
• Voltage: 600 volts
• Plated: Yes
• Insulation Type: Vinyl
• Buy American Compliant: Yes
