HUBBELL TN108F Nylon Insulated Fork Terminal 12-10 AWG

Product Description

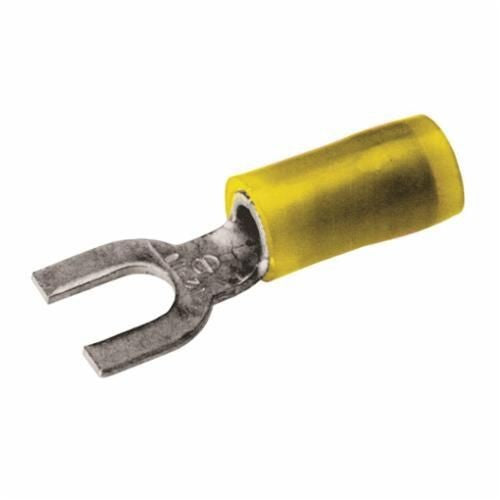

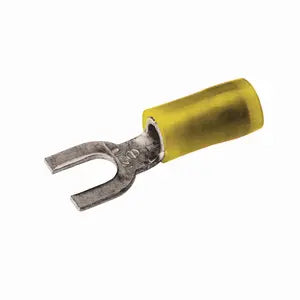

The HUBBELL TN108F is a nylon insulated fork terminal suitable for 12 to 10 AWG conductors. Made from copper with a brazed seam barrel and inner serrations, it ensures strong wire connections. The fork tongue design allows for easy installation by loosening the screw. Its electro-tin plating offers protection against corrosion, while the inspection hole aids in confirming the correct wire placement. This terminal is ideal for both power and control circuits.

• Fork tongue design for quick installation
• Constructed from corrosion-resistant copper
• Inspection hole for verifying wire insertion

Product Highlights

The HUBBELL TN108F provides efficiency in installation and longevity in harsh environments.

Product Information

Standard Information

• Brand: HUBBELL
• MPN: TN108F

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Voltage Rating: 600 VAC
• Temperature Rating: 105 deg C
• Material: Copper
• Barrel Style: Brazed Seam
• Tongue Style: Fork
• Stud Size: NO 6-8
• Color Code: Yellow
• Conductor Type: Copper
• Length: 1.01 inches
• Overall Length: 1.01 inches
• Series: TN
• Tongue Size: 0.31 inches W
• Standard & Approvals: UL 486, CSA Certified, RoHS Compliant
• Application: For both power and control circuits, wire sizes 26 AWG through 10 AWG
