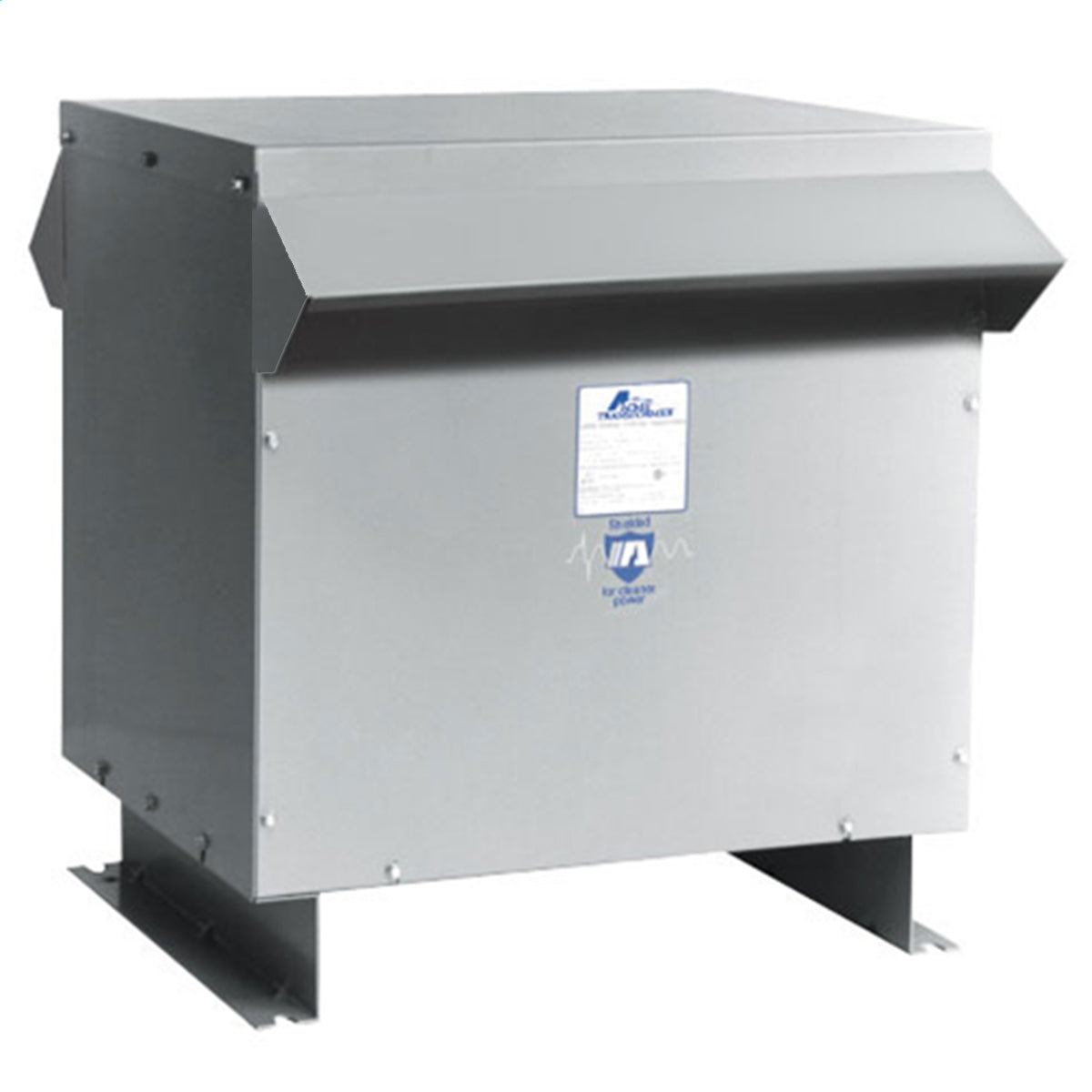

Hubbell T3045K0013B ACME Transformer 3PH 45KVA 480-208Y120 NEMA3R

Product Description

The Hubbell T3045K0013B is an Acme Electric Isolation Ventilated Dry Distribution Transformer. It features a primary voltage of 480D VAC and a secondary voltage of 208Y/120 VAC with a power rating of forty-five kVA. This product is designed for three-phase systems operating at sixty Hertz.

• Isolation ventilated design for thermal regulation.
• NEMA 3R enclosure suitable for outdoor use.
• High efficiency at ninety-eight point four percent.

Product Highlights

This transformer is ideal for various applications requiring reliable distribution of electrical power. Its robust design and efficiency make it suitable for commercial and industrial uses.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: T3045K0013B

Technical Specifications

• Type: Isolation Ventilated
• Power Rating: 45 kVA
• Primary Voltage: 480D VAC
• Secondary Voltage: 208Y/120 VAC
• Phase: 3 ph
• Frequency Rating: 60 Hz
• Efficiency: 98.4 %
• Temperature Rating: 150 deg C
• Connection Type: Terminal Lug
• Enclosure: NEMA 3R
• Mounting Type: Floor
• Dimensions: 19.37 in L x 24.39 in W x 25.5 in H
• Number of Taps: (2) 2.5% ANFC/(4) 2.5% BNFC
• Housing Material: Steel
• Includes: Weathershield
• Standards/Approvals: ANSI Specified, CSA C22.2 No. 47, IEEE Certified, OSHA Approved, UL 1561, U.S. DOE 10 CFR Part 431
