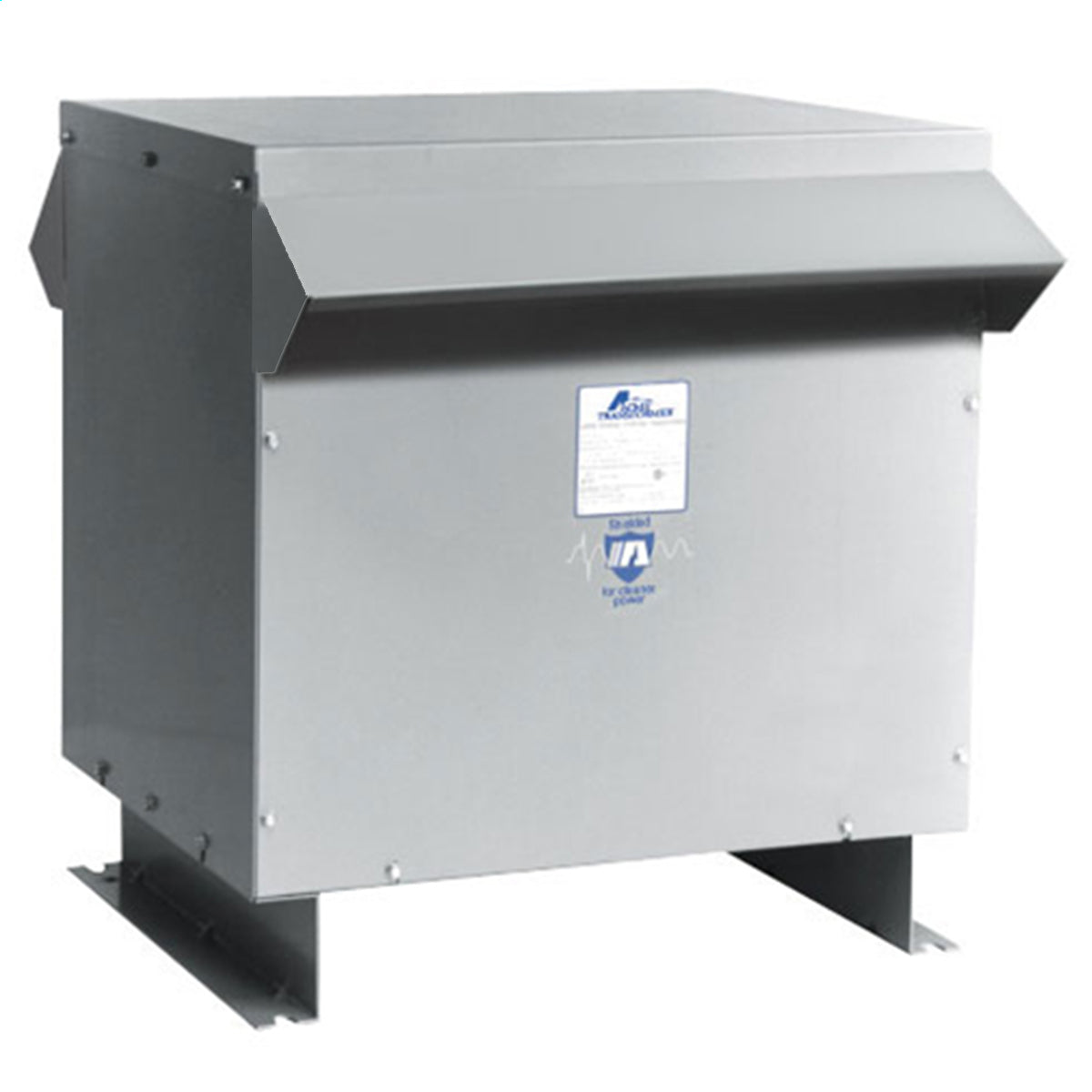

Hubbell T3030K0013B ACME 3PH 30KVA TFM

Product Description

Hubbell T3030K0013B is an isolation ventilated dry distribution transformer suitable for various electrical applications. This transformer operates with a primary voltage of four hundred eighty volts alternating current and a secondary voltage of two hundred eight volts wye and one hundred twenty volts alternating current. It provides a power rating of thirty kVA and operates at sixty hertz with a three-phase connection.

• Efficient performance with 98.23% efficiency
• NEMA 3R enclosure designed for outdoor use
• Includes terminal lugs for easy connection

Product Highlights

This transformer is built for durability and reliability in demanding environments. It allows for operation without excessive noise and provides effective ventilation to manage heat and airflow.

Product Information

Standard Information

• Brand: Hubbell
• MPN: T3030K0013B

Technical Specifications

• Type: Isolation Ventilated
• Phase: 3 ph
• Power Rating: 30 kVA
• Primary Voltage: 480D VAC
• Secondary Voltage: 208Y/120 VAC
• Dimensions: 19.37 in L x 24.39 in W x 25.5 in H
• Efficiency: 98.23%
• Temperature Rating: 150 deg C
• Enclosure: NEMA 3R
• Frequency Rating: 60 Hz
• Mounting Type: Floor
• Connection Type: Terminal Lug
• Includes: Weathershield
• Number of Taps: (2) 2.5% ANFC/(4) 2.5% BNFC
• Housing Material: Steel
• Standards/Approvals: ANSI Specified, CSA C22.2 No. 47, IEEE Certified, OSHA Approved, UL 1561, U.S. DOE 10 CFR Part 431
