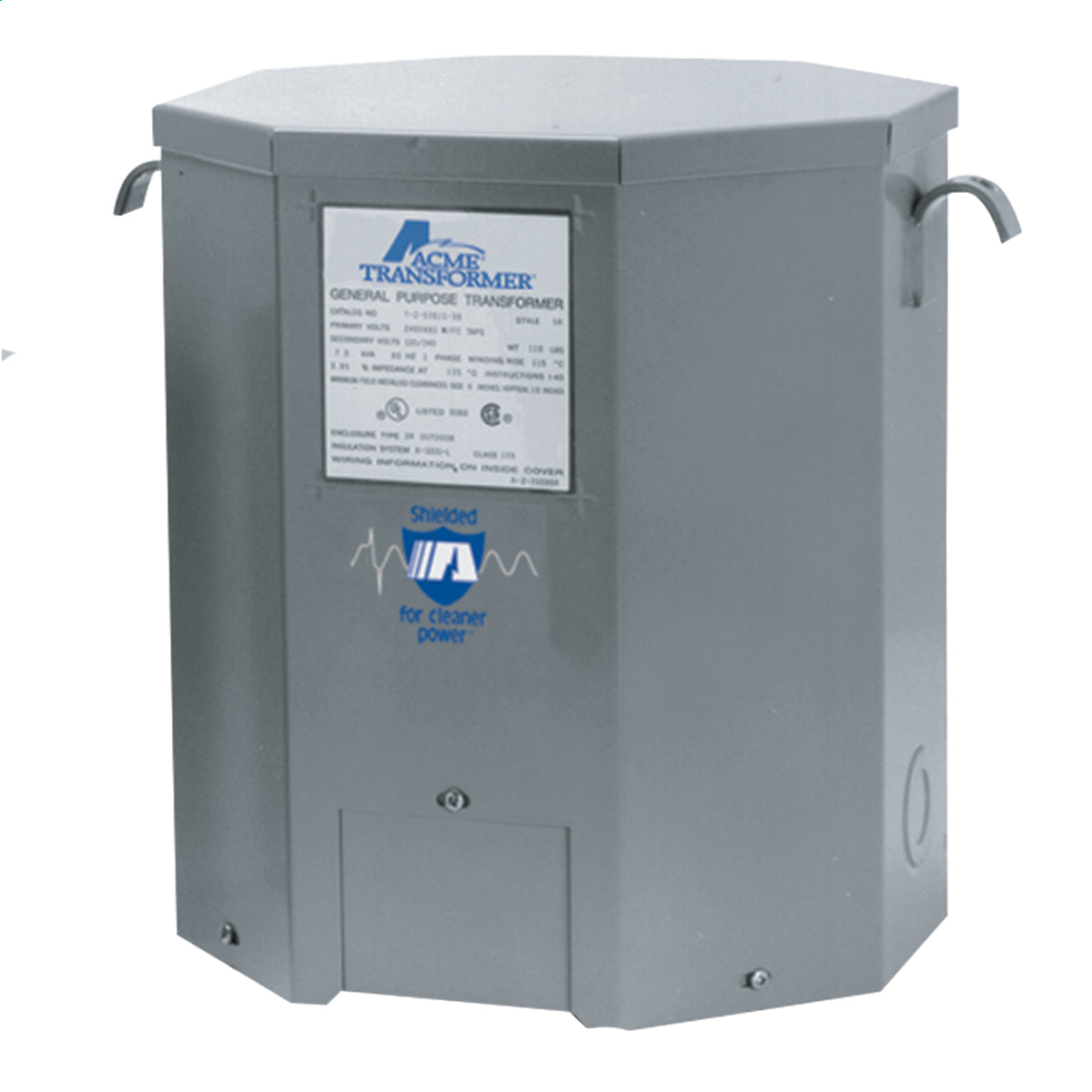

Hubbell T2535183S T2-53518-3S-ELEC 25KVA DRY-TYPE TRANSFORMER 240X480 PRIMARY - 120/240 SECONDARY

Product Description

Hubbell T2535183S is a 25 kVA dry-type distribution transformer designed for industrial settings. This transformer features a primary voltage of 240/480 VAC and a secondary voltage of 120/240 VAC. Suitable for various applications, it is built to operate efficiently at 60 Hz. The transformer includes four windings, ensuring flexibility in electrical setups.

• Designed for industrial and commercial applications.
• NEMA 3R enclosure for both indoor and outdoor use.
• Maximum amperage ratings of seventy, one hundred fifty, and three hundred for various voltages.

Product Highlights

The Hubbell T2535183S is efficient and reliable for harsh environments. Its encapsulated design protects against moisture and air, enhancing durability.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: T2535183S

Technical Specifications

• Application: Harsh Industrial Locations, Corrosive Chemical Exposure and Waste Water Treatment Facilities Applications
• Connection Type: Wire Lead
• Dimensions: 13.34 inches L x 16.13 inches W x 18.44 inches H
• Enclosure: NEMA 3R
• Frequency Rating: 60 Hz
• Housing Material: Steel
• Insulation: 180 degrees C
• Maximum Amperage Rating: 70/150/300 A
• Mounting Type: Wall
• Phase: 1 ph
• Power Rating: 25 kVA
• Secondary Voltage: 120/240 VAC
• Temperature Rating: 115 degrees C
• Standards/Approvals: UL 506 File No. E79947V1, UL Control Number 50B8, UL Insulation Number H3221, CSA Certified, OSHA Approved, ANSI Specified, IEEE Certified
