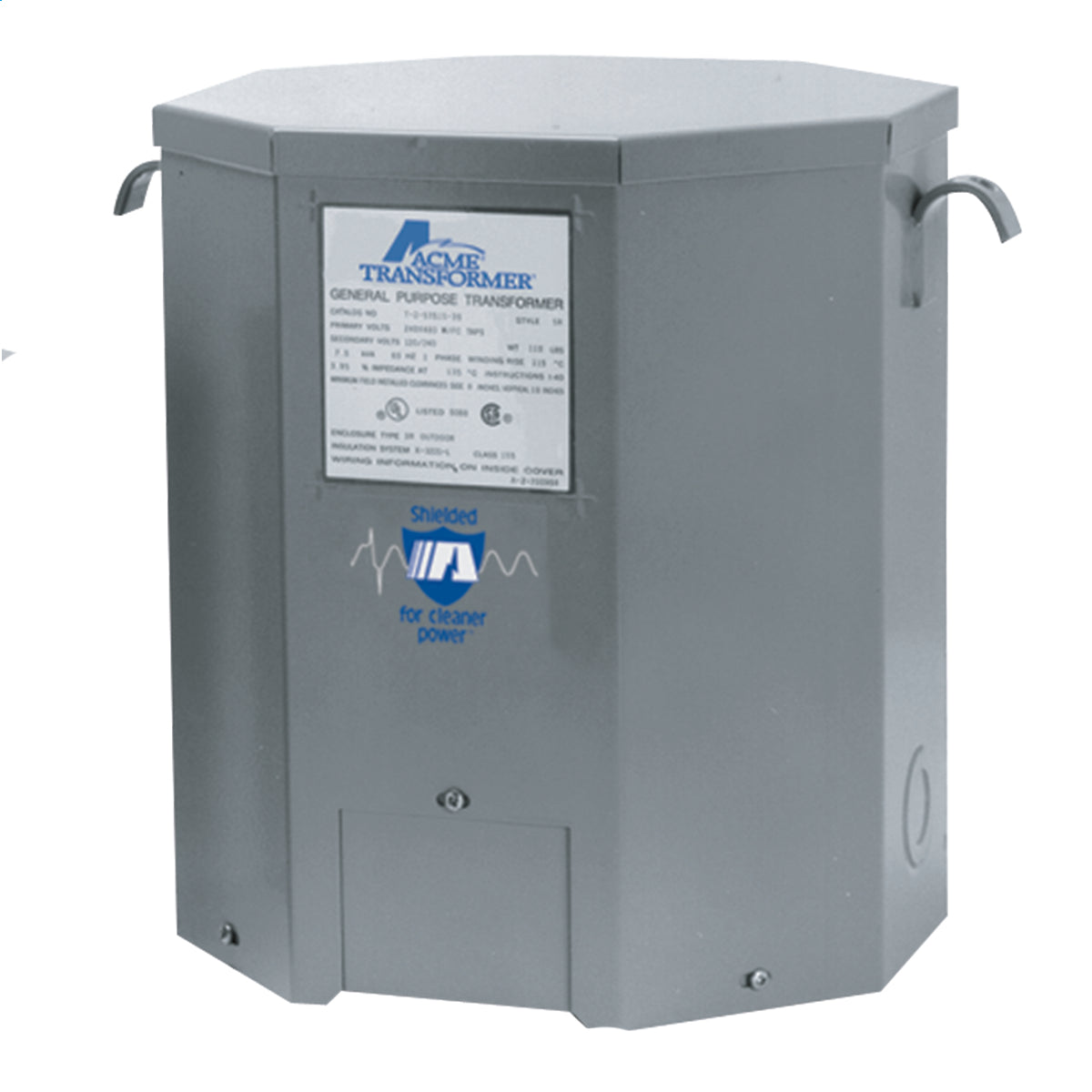

Hubbell T2535173S T2-53517-3S-ELEC 15KVA Dry-Type Transformer 240X480 Primary - 120/240 Secondary - Four Windings

Product Description

Hubbell T2535173S is a distribution transformer designed for reliable performance in various applications. It features a primary voltage of 240/480 VAC and a secondary voltage of 120/240 VAC, with a power rating of 15 kVA at 60 Hz and single-phase. The transformer supports a maximum amperage of 40/80/175 A and is designed for wall mounting.

• Features wire leads for easy installation.
• Constructed with a NEMA 3R enclosure for outdoor or indoor use.
• Designed for harsh environments, including corrosive chemical exposure.

Product Highlights

This transformer is ideal for commercial and industrial setups, providing versatile power distribution with robust construction.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 04750373415

Technical Specifications

• Application: Harsh Industrial Locations, Corrosive Chemical Exposure, Waste Water Treatment Facilities
• Connection Type: Wire Lead
• Dimensions: 11.59 inches L x 14.12 inches W x 16.94 inches H
• Enclosure: NEMA 3R
• Frequency Rating: 60 Hz
• Housing Material: Steel
• Insulation: 180 degrees C
• Maximum Amperage Rating: 40/80/175 A
• Mounting Type: Wall
• Phase: 1 ph
• Power Rating: 15 kVA
• Secondary Voltage: 120/240 VAC
• Temperature Rating: 115 degrees C
• Standards/Approvals: UL, CSA, OSHA, ANSI, IEEE Certified
• Prop65 Message: WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
