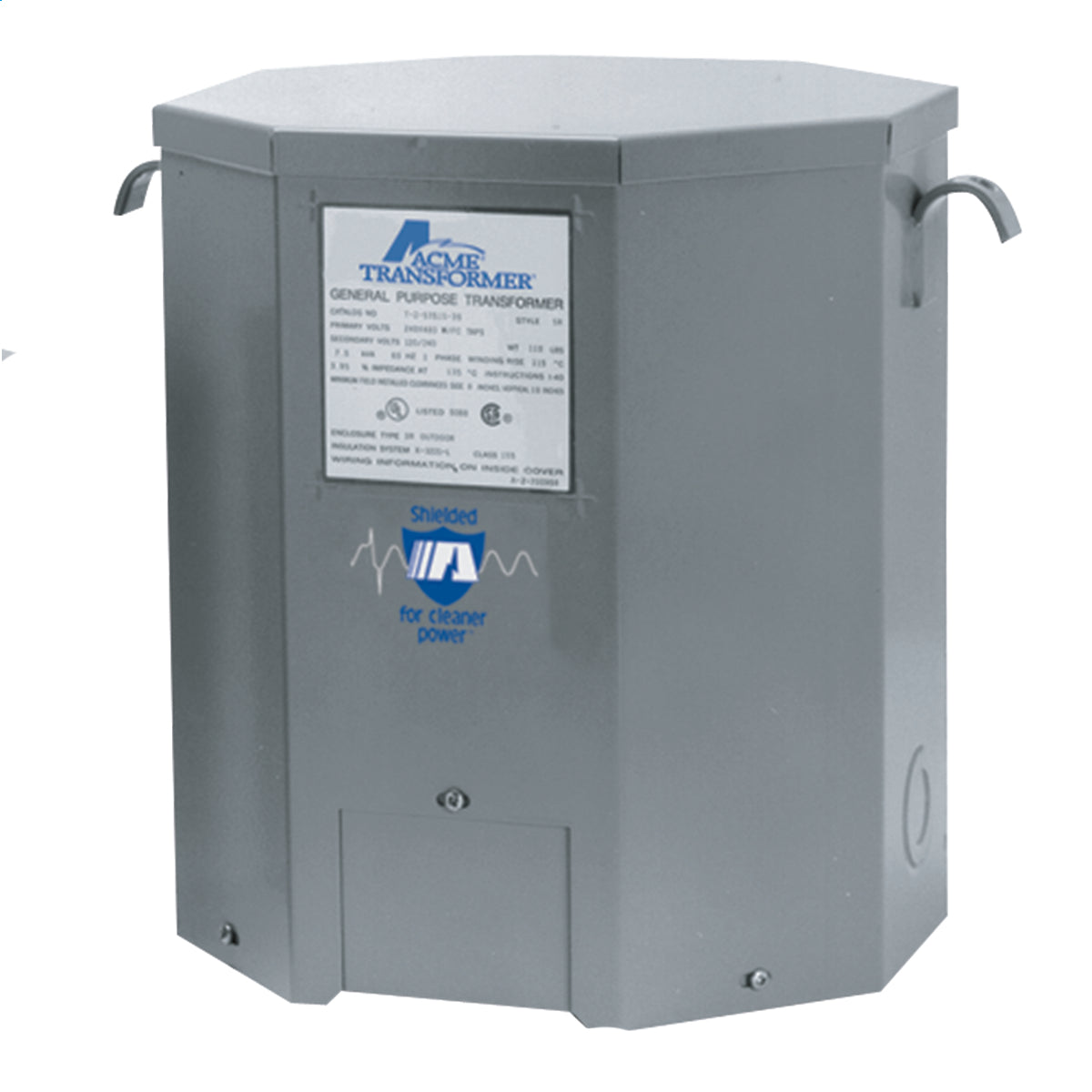

Hubbell T2535163S T2-53516-3S-ELEC 10KVA Dry-Type Transformer 240X480 Primary - 120/240 Secondary - Four Windings

Product Description

The Hubbell T2535163S is an Acme Electric Distribution Transformer designed for industrial and commercial use. It features a 240/480 VAC primary and a 120/240 VAC secondary with a power rating of 10 kVA and a frequency of 60 Hz. This model includes four windings and can operate at 30, 60, or 110 A maximum. It is suitable for harsh environments, including corrosive chemical exposure and wastewater treatment facilities.

• Air cooled/dry type transformer
• Wall mountable with a steel housing
• NEMA 3R rated for indoor and outdoor use

Product Highlights

This transformer is engineered for safety and efficiency. It has an encapsulated design that protects against moisture and air exposure. The sound levels are below NEMA standards, ensuring quiet operation.

Product Information

Standard Information

• Manufacturer: Hubbell
• Model Number: T2535163S

Technical Specifications

• Type: Air Cooled/Dry
• Phase: 1 ph
• Power Rating: 10 kVA
• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120/240 VAC
• Frequency Rating: 60 Hz
• Maximum Amperage Rating: 30/60/110 A
• Enclosure: NEMA 3R
• Dimensions: 10.84 in L x 13.5 in W x 15.19 in H
• Insulation: 180 deg C
• Housing Material: Steel
• Temperature Rating: 115 deg C
• Mounting Type: Wall
• Connection Type: Wire Lead
