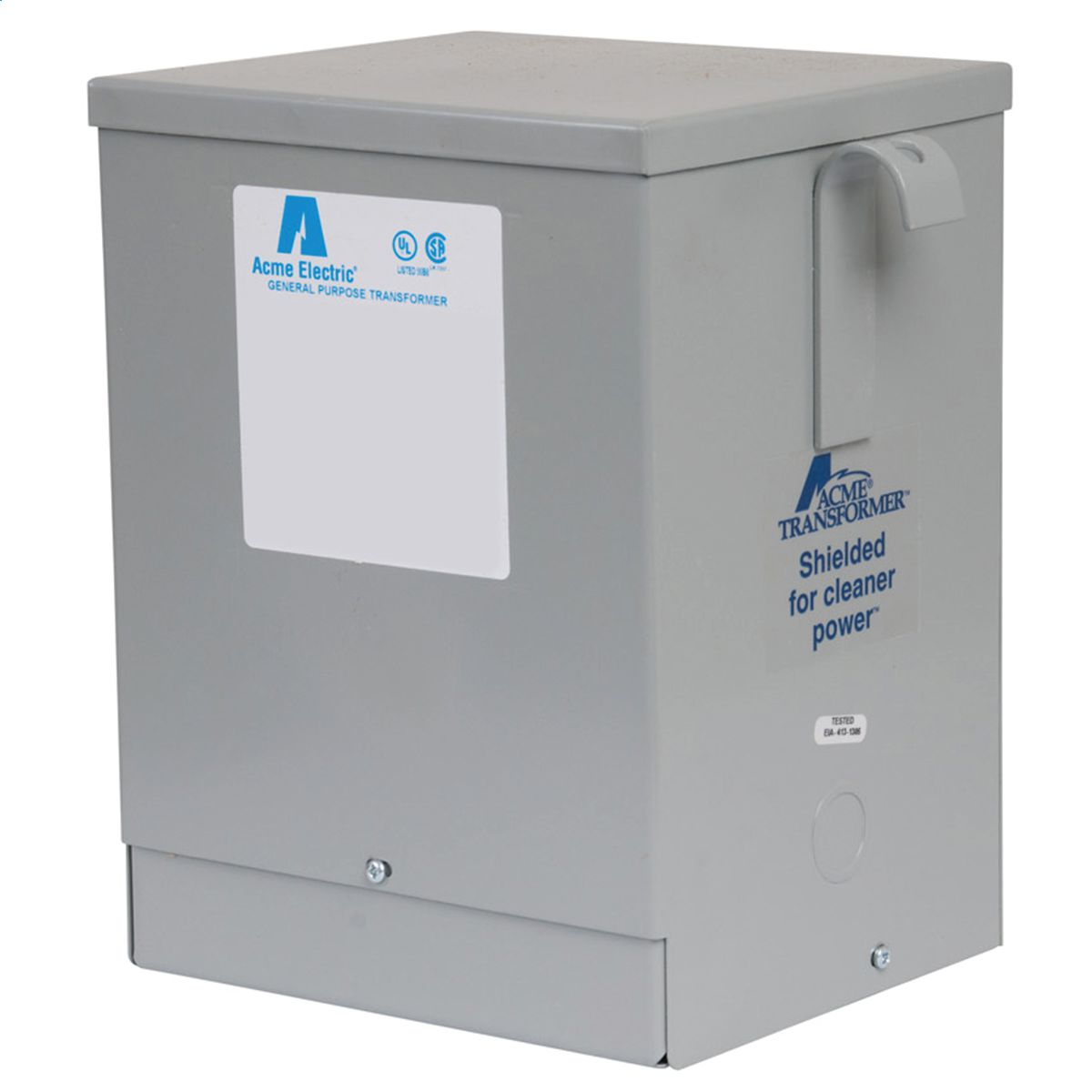

Hubbell T2530134S T2-53013-4S-ELEC 3KVA DRY-TYPE TRANSFORMER 240X480 PRIMARY - 120/240 SECONDARY

Product Description

Hubbell presents the T2530134S, a distribution transformer designed for air cooled and dry applications. This transformer operates with a 240/480 VAC primary voltage and offers 120/240 VAC secondary voltage. It has a power rating of 3 kVA and operates at 60 Hz in a single-phase configuration.

• Encapsulated core and coil for enhanced durability
• NEMA 3R enclosure for outdoor applications
• Wire lead connection type for easy installation

Product Highlights

This transformer is suitable for industrial and commercial applications with a focus on reliability and efficiency.

Product Information

Standard Information

• Brand: Hubbell
• MPN: T2530134S

Technical Specifications

• Type: Air Cooled/Dry
• Phase: 1 ph
• Power Rating: 3 kVA
• Frequency Rating: 60 Hz
• Connection Type: Wire Lead
• Dimensions: 7.13 in L x 10.31 in W x 11.5 in H
• Enclosure: NEMA 3R
• Insulation: Class H/180 deg C
• Temperature Rating: 115 deg C
• Secondary Voltage: 120/240 VAC
• Standards/Approvals: UL 506|E79947V1|50B8|X3221|CSA Certified|OSHA Approved
• Prop65 Message: WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
