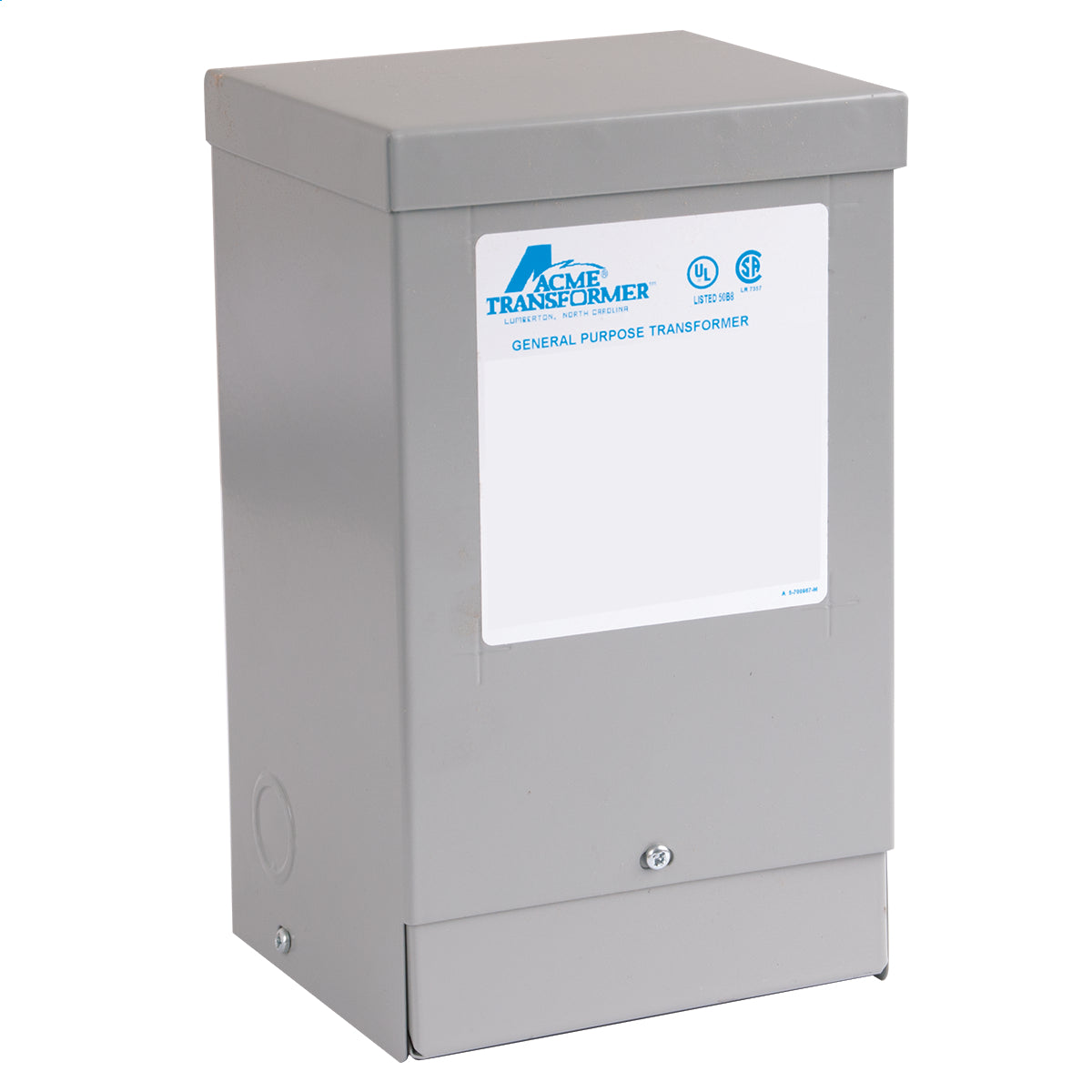

Hubbell T253012S T2-53012-S 2KVA Dry-Type Transformer 240X480 Primary - 120/240 Secondary - Four Windings

Product Description

The Hubbell T253012S is a 2 kVA dry-type distribution transformer designed for both primary and secondary voltage applications. It operates on a primary voltage of two hundred forty to four hundred eighty volts and delivers secondary voltage of one hundred twenty to two hundred forty volts. This transformer features four windings and is rated for operation in a frequency range of sixty hertz.

• Encapsulated core and coil for durability
• Air cooled for efficient performance
• NEMA 3R enclosure provides outdoor protection

Product Highlights

This transformer is ideal for industrial and commercial settings, designed to meet the needs of low voltage applications with efficiency and reliability.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: T253012S

Technical Specifications

• Type: Air Colled/Dry
• Phase: 1 ph
• Power Rating: 2 kVA
• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120/240 VAC
• Frequency Rating: 60 Hz
• Enclosure: NEMA 3R
• Dimensions: 5.13 in L x 5.5 in W x 13 in H
• Insulation: Class H/180 deg C
• Temperature Rating: 115 deg C
• Mounting Type: Wall
• Connection Type: Wire Lead
• Standards/Approvals: UL 506|CSA Certified|OSHA Approved|ANSI Specified|IEEE
