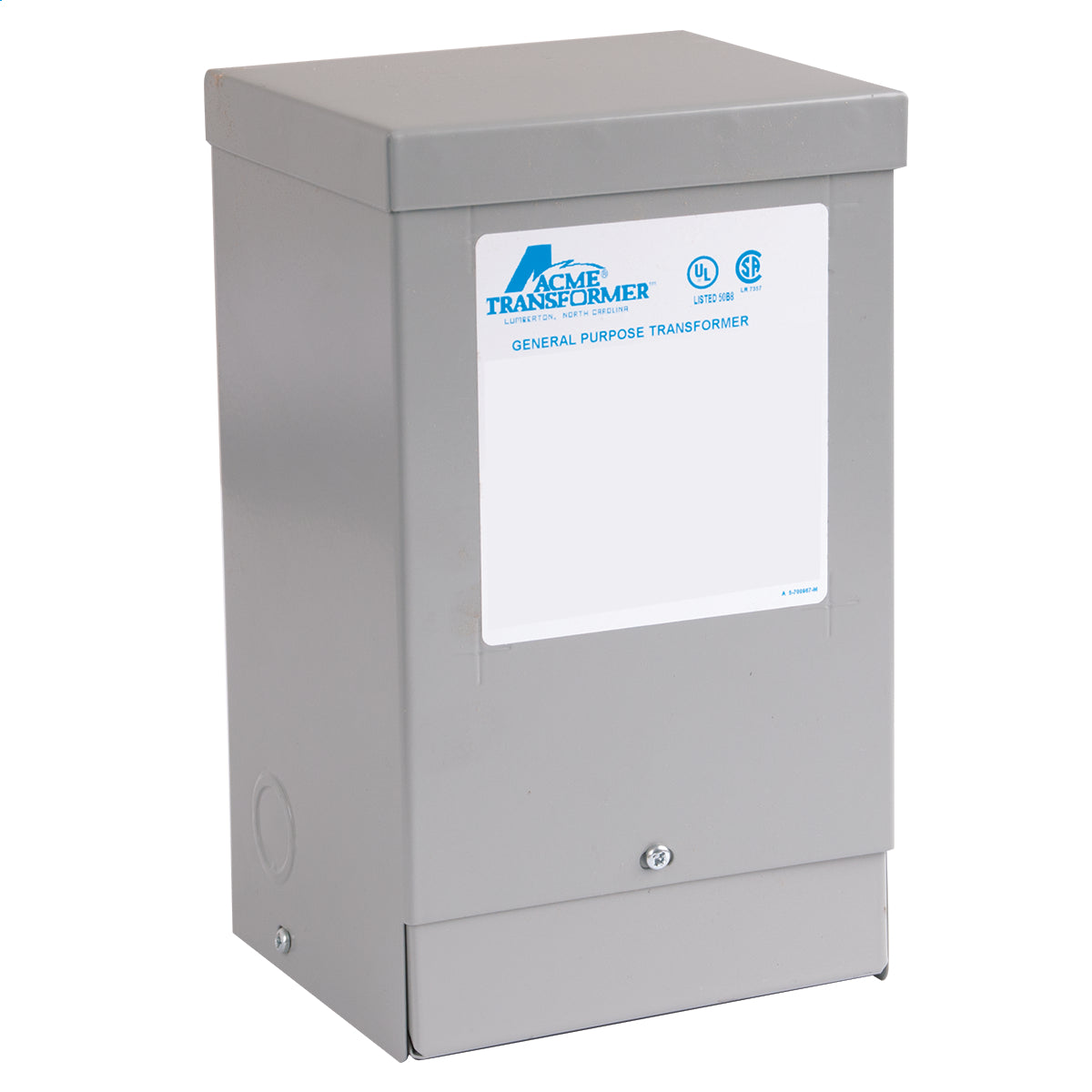

Hubbell T181059 T-1-81059-ELEC BUCK/BOOST 11.25 kVA Multi-Tap

Product Description

Hubbell T181059 is an encapsulated buck boost transformer. It operates with a 120/240 VAC primary and a 16/32 VDC secondary. The power rating is 11.25 kVA. This transformer is suitable for various applications and operates at 50/60 Hz with a single-phase design.

• Encapsulated core and coil design.
• Equipped with wire lead/screw connections.
• Complies with NEMA 3R enclosure standards.

Product Highlights

This transformer is designed for low voltage lighting and control circuitry applications. It provides an effective solution for boosting or reducing line voltage.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 04750308645

Technical Specifications

• Power Rating: 11.25 kVA
• Maximum Amperage Rating: 46.90 A at 16 V / 23.40 A at 32 V Output
• Primary Voltage: 120/240 VAC
• Secondary Voltage: 16/32 VDC
• Frequency Rating: 50/60 Hz
• Phase: 1 ph
• Dimensions: 4.51 in L x 4.75 in W x 9.68 in H
• Enclosure: NEMA 3R
• Housing Material: Steel
• Insulation Class: H/180 deg C
• Temperature Rating: 115 deg C
• Mounting Type: Wall
• Application: Low voltage lighting or control circuitry applications
• Standards/Approvals: UL 506, CSA Certified, OSHA Approved
