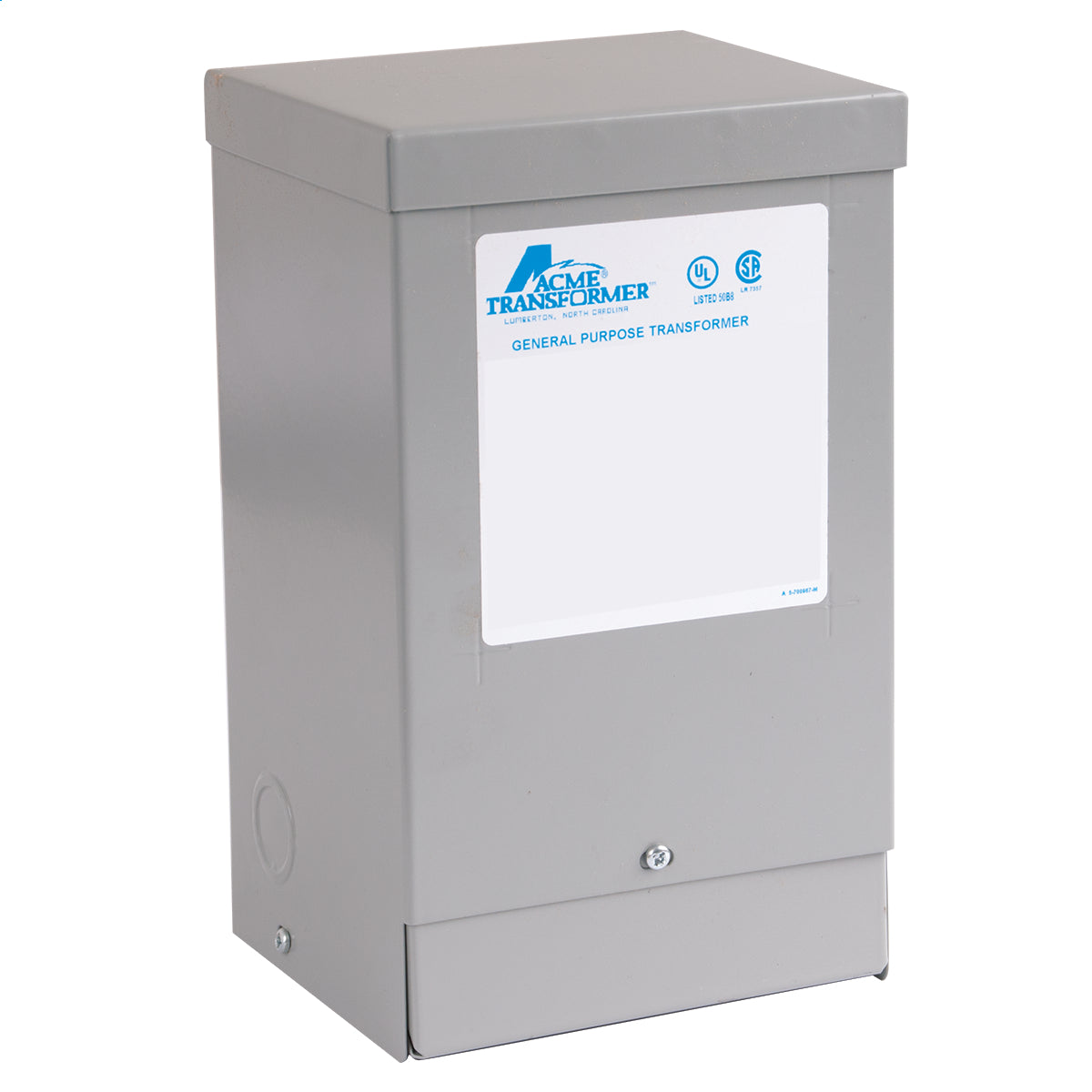

Hubbell T181058 T-1-81058-ELEC .50KVA BUCK AND BOOST

Product Description

Hubbell T181058 is an isolation buck boost transformer designed for voltage adjustment. It operates with a 120/240 VAC primary and a 16/32 VDC secondary, providing a power rating of 7.5 kVA. This transformer is suitable for both 50 and 60 Hz applications and is single-phase. It allows a maximum output of 31.20 A at 16 V and 15.60 A at 32 V. The unit is equipped with wire lead/screw connections and is intended for wall mounting. The steel housing ensures durability, and it meets the NEMA 3R requirements.

• Encapsulated core and coil design
• Ideal for boosting line voltage by 5 to 20%
• NEMA 3R rated for outdoor applications

Product Highlights

This transformer serves as a vital component for low voltage lighting or control circuitry applications. Its encapsulated core minimizes the risk of environmental damage while enhancing efficiency.

Product Information

Standard Information

• Power Rating: 7.5 kVA
• Application: For low voltage lighting or control circuitry applications

Technical Specifications

• Manufacturer Part Number: T181058
• Connection Type: Wire Lead/Screw
• Phase: 1 ph
• Dimensions: 4.2 inches L x 4.37 inches W x 9.06 inches H
• Frequency Rating: 50/60 Hz
• Enclosure: NEMA 3R
• Maximum Amperage Rating: 31.20 A at 16 V / 15.60 A at 32 V Output
• Insulation: Class H / 180 degrees C
• Temperature Rating: 115 degrees C
