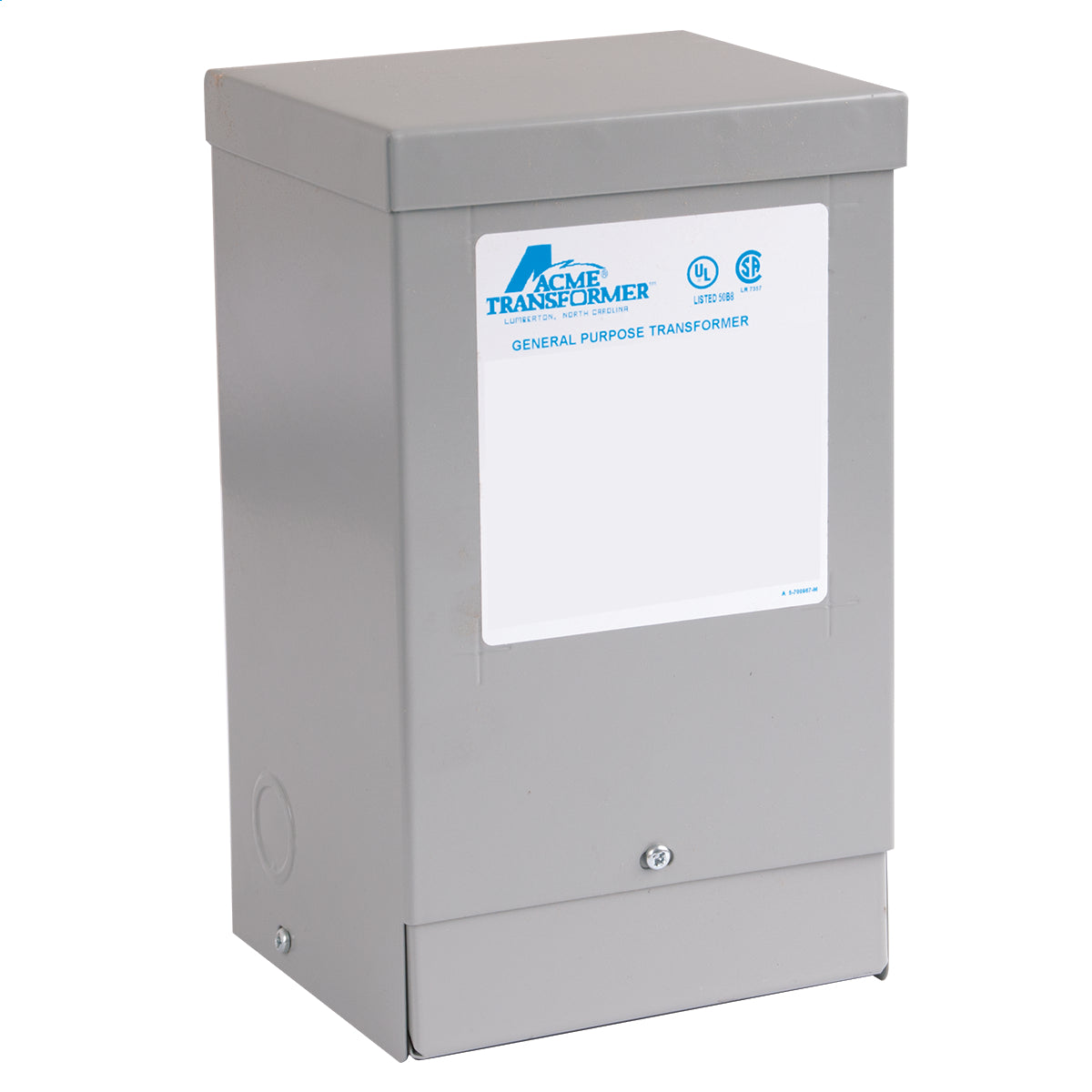

Hubbell T113074 T-1-13074 -ELEC 1.5KVA Buck And Boost

Product Description

The Hubbell T113074 is an encapsulated Buck Boost Transformer designed for voltage adjustment. It features a primary voltage of 120/240 VAC and a secondary voltage of 16/32 VDC, making it suitable for many electrical applications. This transformer has a power rating of 22.5 kVA and operates at 60 Hz with a single-phase design.

• Power Rating: 22.5 kVA
• Dimensions: 5.13 inches long x 5.5 inches wide x 11.62 inches high
• Housing Material: Steel

Product Highlights

The T113074 transformer is helpful in both bucking and boosting voltage levels. Its compact design allows for easy wall mounting, making it a reliable choice for electrical professionals.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: T113074

Technical Specifications

• Application: For low voltage lighting or control circuitry applications
• Connection Type: Wire Lead/Screw
• Max Amperage Rating: 93.7 A at 16 V/46.9 A at 32 V Output
• Frequency Rating: 60 Hz
• Grade: Class H/180 deg C
• Temperature Rating: 115 deg C
• Enclosure Rating: NEMA 3R
