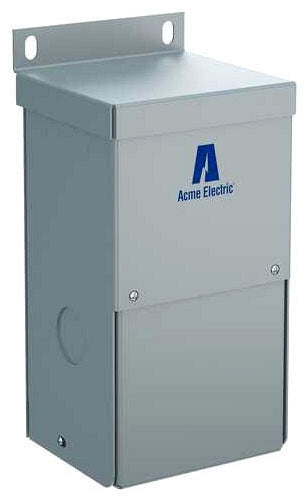

Hubbell T1-53005 Single Phase Transformer 0.100 Kva

Product Description

The HUBBELL T1-53005 is a single-phase transformer rated at 0.100 KVA. Transformers of this type step voltage up or down between supply and load circuits, providing the correct operating voltage for control systems, lighting circuits, or low-voltage equipment. The T1-53005 is a compact unit suited for applications where space is limited and precise voltage conversion is required. Licensed electricians and HVAC controls technicians are the primary installers. It fits into residential and light commercial electrical and controls work where a small, reliable single-phase transformer is specified.

This transformer is appropriate for low-load single-phase applications in residential and light commercial environments. Typical installations include HVAC control circuits, panel sub-feeds, and low-voltage control wiring systems. Its 0.100 KVA capacity makes it well matched to signal and control-level loads rather than high-demand power circuits. Installers working on building automation, HVAC controls, or small appliance circuits will find this unit fits standard transformer mounting arrangements.

Key Features

• 0.100 KVA single-phase rating suitable for control and low-voltage circuit applications
• Compact form factor designed for space-constrained electrical panels and enclosures
• Single-phase design simplifies wiring in residential and light commercial systems
• Manufactured by HUBBELL, a recognized name in electrical supply and controls components

Compatibility

Designed as an OEM-style replacement or new-installation transformer for single-phase low-voltage control and electrical circuits in residential and light commercial systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before connecting or disconnecting the transformer. Verify primary and secondary voltage ratings match the supply and load requirements before energizing. Do not exceed the 0.100 KVA rated capacity of the unit.

Technical Specifications

• Phase: Single Phase
• Capacity: 0.100 KVA

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: T1-53005
