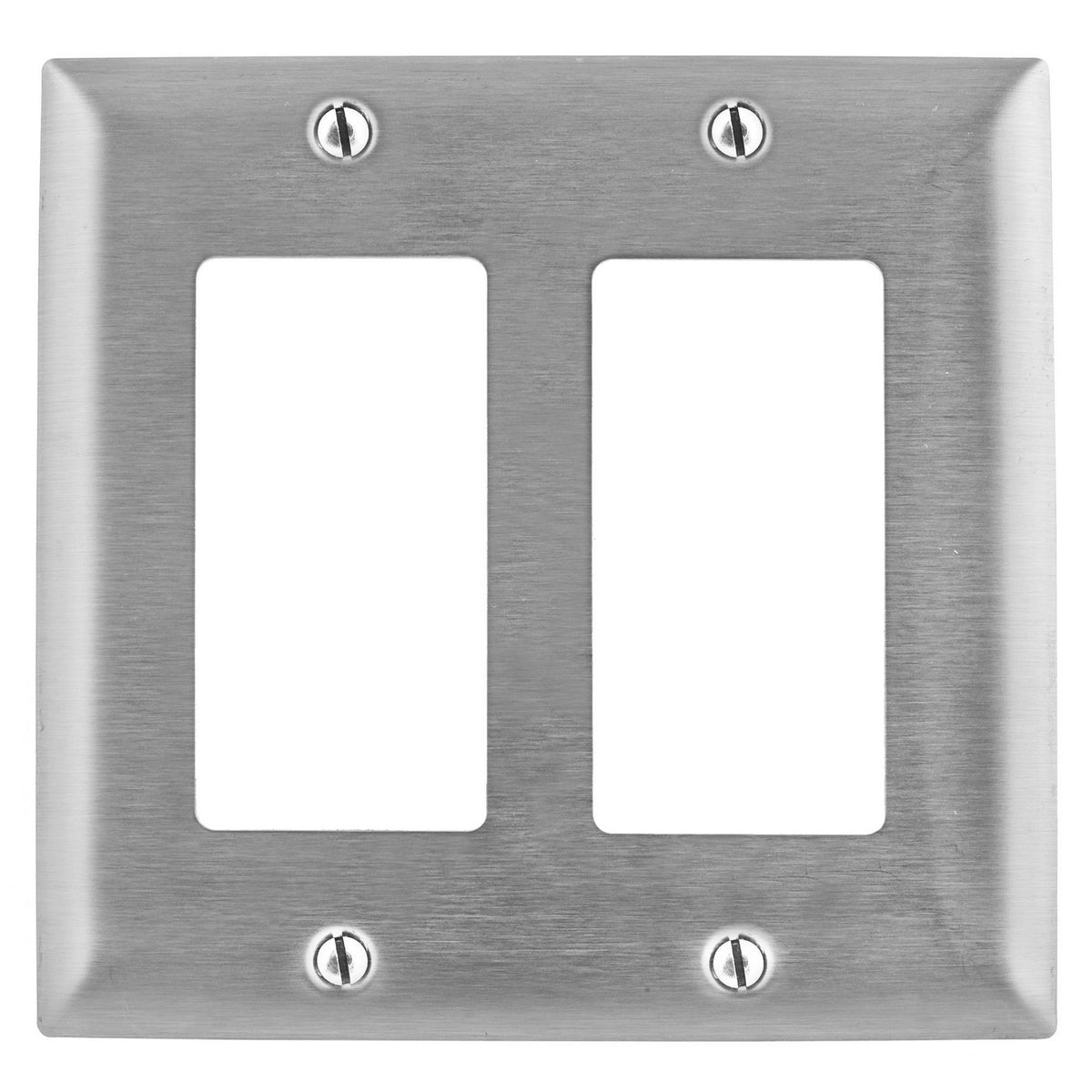

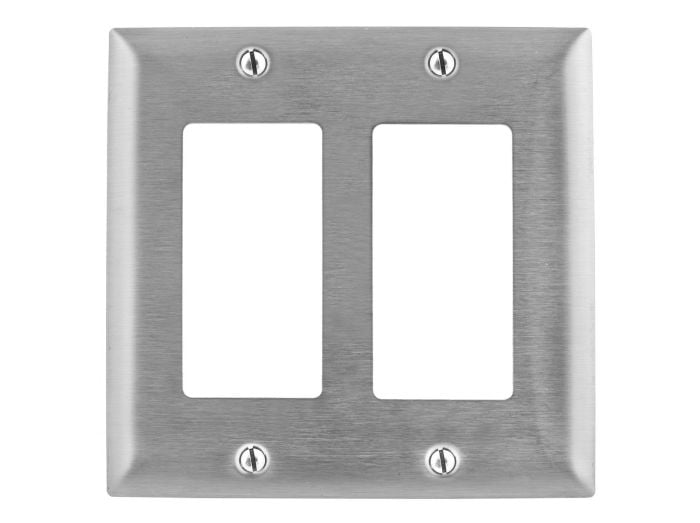

Hubbell SSJ262 Wallplate, Jumbo, 2-G, GFCI, SS

Product Description

The HUBBELL SSJ262 is a wiring device-Kellems decorative wallplate. This jumbo mid-sized, 2-gang wallplate has a stamped construction and is made of 302/304 stainless steel. It is lacquer coated to inhibit oxidation and provides protection against contact of live terminals and wiring.

• Provides a plush appearance with the durability of metal
• Protective plastic film helps to prevent scratches and damage
• Provides extended life in abusive and corrosive environments

Product Highlights

The Hubbell SSJ262 wallplate is ideal for industrial and commercial applications, providing a finished look to any installation.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: SSJ262
• Country of Origin: PRI

Technical Specifications

• Manufacturer Part Number: SSJ262
• Application: Used to protection against contact of live terminals and wiring and provides finished look to installation
• Color: Metallic
• Construction: Stamped
• Cutout: (2) Decorator;(2) Decorator/(2) GFCI Opening
• Finish: Lacquer Coated;Smooth Satin
• Material: 302/304 Stainless Steel
• Mounting: Threaded
• Number of Gangs: 2
• Orientation: Vertical;Horizontal/Vertical
• Size: 5.31 in W x 5.25 in H
• Standards/Approvals: RoHS Compliant|UL 514D|CSA Certified;RoHS Compliant|UL 514D File No. E31999/E92074|CSA C22.2 No. 42.1|CSA 1733174
• Type: Jumbo Mid Sized;Jumbo Mid-Size
• Designated Size: Jumbo
• Mounting Screw Material: 302/304 Stainless Steel
• Overall Dimension: 5.31 Inch Width x 5.25 Inch Height x 0.04 Inch Thickness
• Approval: UL, CSA
• EU RoHS Indicator: Yes
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Material - Mounting Hardware: Screw Mounting
• Number of Gang(s): 2-Gang
• Specifications: Appearance - Horizontal brushed appearance Material - Stainless steel 302/304 Mounting Screws - 302/304 SS, Slotted head Plate Openings - Decorator Plate Type - 2-Gang
• Style: 2-Decorator
• Wall Plate Size: Mid-Sized
• Thickness: 0.035 in.
• Brand Name: Hubbell Premise Wiring
• Manufacturer: Hubbell, Inc
• Product Name: Faceplate
• Product Type: Faceplate
• Number of Unloaded Sockets: 2
• Total Number of Sockets: 2
• Family Series: Hubbell Electrical Box Covers
• Composition: Metallic
• Cover Type: Decorator
• Cover Design: Flat
• Approvals: CSA, UL
• Standard: UL
• Sub Brand: Wallplates
• Used With: (2) Decora or Ground Fault Circuit Interrupter Switch
