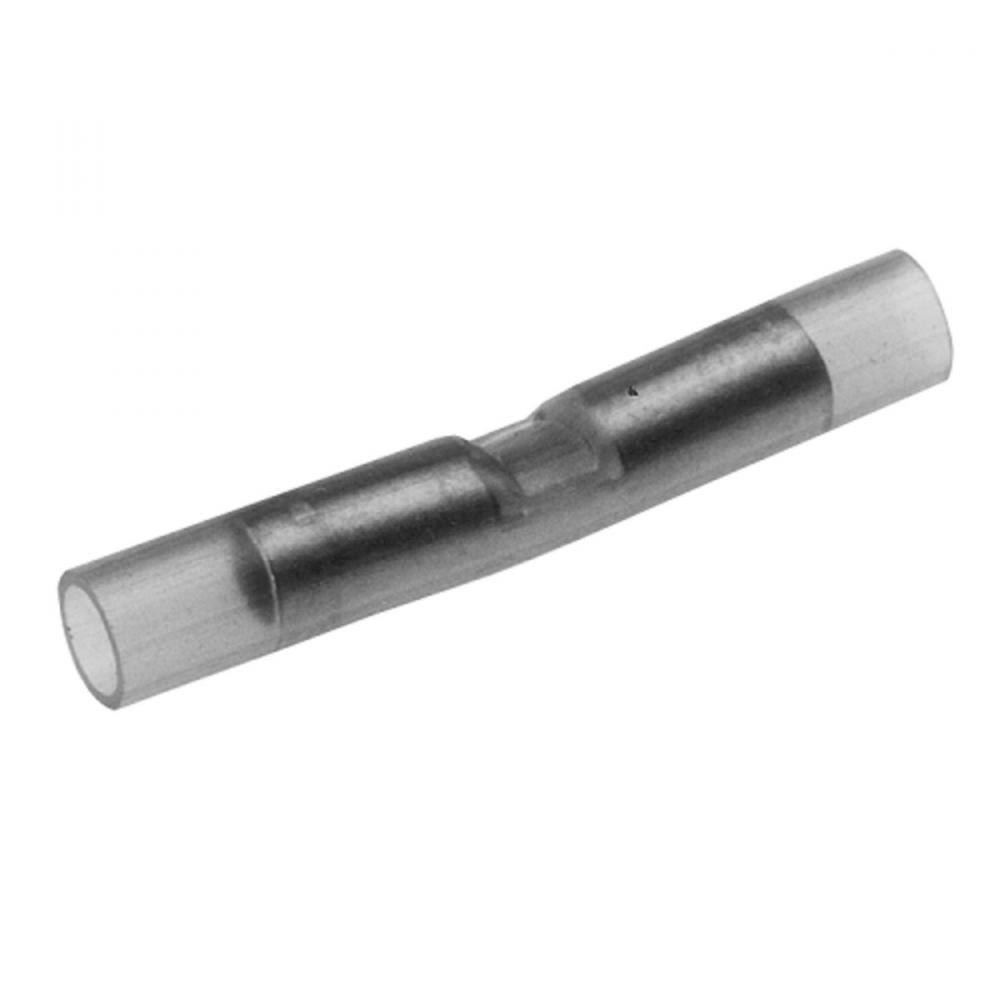

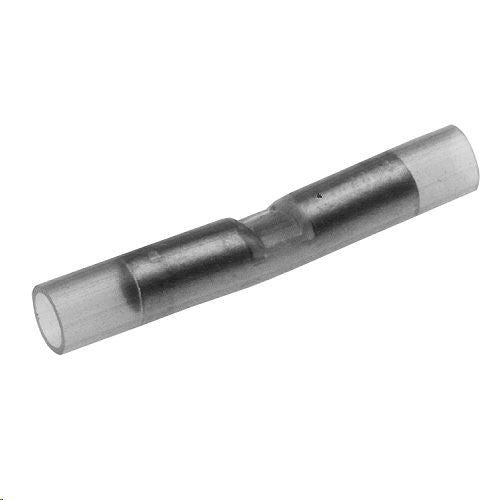

HUBBELL SP10 Vinyl Splice for 12 - 10 AWG

Product Description

The HUBBELL SP10 is a vinyl-insulated splice made for 12 to 10 AWG conductors. This connector is made from seamless electrolytic copper tubing, ensuring solid conductivity and tensile strength. The design includes a funnel entry for easy wire insertion and features electro-tin plating for improved corrosion resistance. It works for a broad range of cables rated up to 600 volts.

• Made from seamless electrolytic copper tubing
• Funnel entry allows for quick wire insertion
• Electro-tin plating for added corrosion resistance

Product Highlights

The HUBBELL SP10 is essential for effective electrical connections.

Product Information

Standard Information

• MPN: SP10
• Brand: HUBBELL

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Material: Copper
• Insulation: Vinyl
• Voltage Rating: 600 V
• Temperature Rating: 105 degrees Celsius
• Length: 1.23 inches
• Outside Diameter: 0.26 inches
• Strip Length: 21/64 inches
• Color Code: Yellow
• Barrel Style: Shrouded
• Standards - Industry Standards Met: UL486
• UL Listed: Yes
• RoHS Compliance Status: CM
• Application: For accommodating a broad range of 600 volt cables
