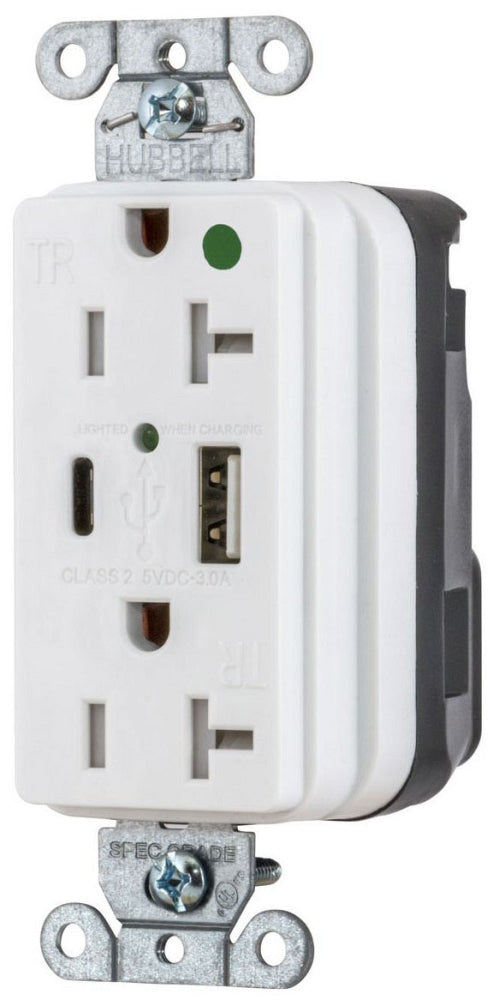

Hubbell SNAP8300UACW USB Charger Receptacle 20A 125V DUP 5A PT AC

Product Description

The Hubbell SNAP8300UACW is a USB charger receptacle designed for efficient power delivery in residential and commercial settings. This device features a decorator duplex straight blade design and is rated for 125 VAC and 20 A. It includes two poles and three wires, making it suitable for various wiring methods.

• Type-A USB 2.0/C, 3 A at 9 VDC.
• Environmental range of -40 to 75 degrees Celsius.
• UL 94V-2 flammability rating for safety.

Product Highlights

This receptacle is ideal for charging devices while providing additional outlet access. Its hospital-grade construction ensures reliability in high-use areas.

Product Information

Standard Information

• Manufacturer: Hubbell
• Product Name: USB Charger Receptacle

Technical Specifications

• Electrical Ratings: 125 VAC, 20 A
• USB Rating: 3 A at 9 VDC
• Connection Type: Snap/Screw
• Grade: Hospital
• Material: Thermoplastic
• Mounting Type: Threaded
• Size: 4.13 in H x 1.84 in D
• Number of Wires: 3
• Number of Poles: 2
• Environmental Conditions: -40 to 75 degrees Celsius
• Standards/Approvals: cULus Listed, UL 498, UL 1310, CSA Certified
