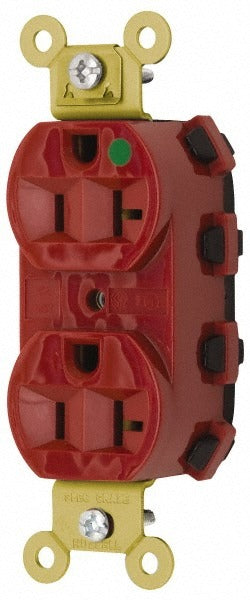

Hubbell SNAP8300RA Hospital Grade Duplex Receptacle 20A

Product Description

The HUBBELL WIRING DEVICE-KELLEMS SNAP8300RA is a hospital grade duplex receptacle rated for 20 amps at 125 volts AC. It features a self-grounding design and a NEMA 5-20R configuration, making it a code-appropriate choice for healthcare facility branch circuits and other applications where hospital grade wiring devices are required. The nylon body provides durability in demanding environments. The flush mount, single-phase unit accepts 3-wire connections on a 2-pole configuration. It is installed by licensed electricians working in healthcare, commercial, or institutional settings.

The SNAP8300RA is suited for hospital patient care areas, clinics, medical offices, and other facilities that require hospital grade receptacles per NEC Article 517. The red color provides a quick visual indicator that the receptacle is on a critical or emergency branch circuit, a common code requirement in healthcare electrical systems. Its wiring module method simplifies termination during rough-in and trim-out phases.

Key Features

• Hospital grade rating meets NEC Article 517 requirements for patient care areas
• NEMA 5-20R configuration for 20A, 125V AC branch circuits
• Self-grounding design eliminates the need for a separate grounding clip
• Red color coding identifies critical or emergency circuit receptacles at a glance
• Nylon body construction for durability in high-use environments
• Wiring module termination method for efficient installation
• CSA Certified, UL Listed, RoHS Compliant, and meets UL Federal Specification

Compatibility

Designed as an OEM-style hospital grade replacement receptacle for flush-mount, single-gang wiring device applications on NEMA 5-20R, 20A, 125V AC branch circuits.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes, including NEC Article 517 for healthcare facilities. De-energize the branch circuit at the panel and verify absence of voltage with a meter before beginning any wiring work. Use the wiring module method as designed; do not bypass or modify the termination system. Flush mount in a standard single-gang box per the manufacturer guidelines and applicable code requirements.
