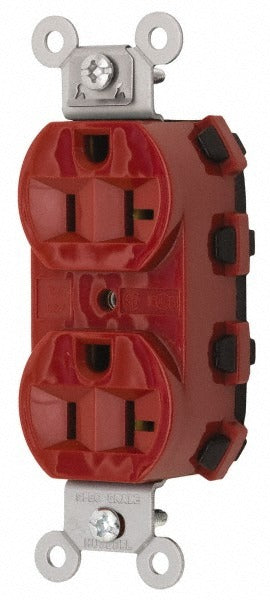

Hubbell SNAP5362RA Duplex Receptacle 20A 125V Red Nema 5-20R

Product Description

The HUBBELL WIRING DEVICE-KELLEMS SNAP5362RA is a specification-grade duplex receptacle rated for 20 amps at 125 volts AC. Built with a nylon body and a self-grounding design, it installs flush-mount in standard electrical boxes. The NEMA 5-20R configuration accepts both standard 15-amp plugs and 20-amp T-blade plugs. The red color finish provides quick visual identification for dedicated or isolated circuits. Licensed electricians install this receptacle in commercial, industrial, and residential applications where specification-grade performance and reliable grounding are required.

This receptacle is suited for flush-mount wall box installations in commercial offices, healthcare facilities, laboratories, and industrial environments where circuit identification by color is standard practice. The 20-amp, 125-volt rating supports single-phase loads on circuits wired with 12 AWG conductors. The wiring module method simplifies field termination and reduces installation time. Its specification grade construction meets the demands of high-use locations where standard residential-grade devices would be inadequate.

Key Features

• Specification-grade construction for commercial and industrial installations
• 20-amp, 125-volt AC rating with NEMA 5-20R configuration
• Self-grounding design eliminates need for separate grounding jumper to box
• Red color body for dedicated or isolated circuit identification
• Nylon body material for durability and impact resistance
• Flush-mount, single-phase, 2-pole, 3-wire configuration
• CSA Certified, UL Listed, UL Federal Specification, and RoHS Compliant

Compatibility

Designed as an OEM-style specification-grade replacement duplex receptacle for flush-mount standard electrical boxes requiring a NEMA 5-20R outlet configuration.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Shut off circuit breaker power and verify the circuit is de-energized with a voltage tester before beginning work. The self-grounding feature requires proper contact with a grounded metal box; verify box grounding integrity before relying solely on self-grounding. Do not use on circuits exceeding 20 amps or 125 volts AC.
